In the previous tutorial, I explained the Page Object Model with Selenium, Cucumber and JUnit. In this tutorial, I’ll create a BDD Framework for the testing of web applications using the Page Object Model with Selenium, Cucumber, and TestNG.
This framework consists of
Cucumber Java – 7.11.1
Cucumber TestNG – 7.11.1
Java 11
Maven – 3.8.6
Selenium – 4.3.0
TestNG – 7.7.1
What Is Page Object Model (POM)?
The Page Object model is an object design pattern in Selenium, where web pages are represented as classes, the various elements on the page are defined as variables in the class and all possible user interactions can then be implemented as methods in the class.
What is Cucumber?
Cucumber is one such open-source tool, which supports Behavior Driven Development(BDD). In simple words, Cucumber can be defined as a testing framework, driven by plain English. It serves as documentation, automated tests, and development aid – all in one.
Steps to setup Cucumber Test Automation Framework using Page Object Model
Download and Install Java on the system
Setup Maven on System
Install Cucumber Eclipse Plugin (Only for Eclipse IDE)
Create a new Maven Project
Create a source folder – src/test/resources to create test scenarios in the Feature file
AddSelenium, Cucumberand JUnit4 dependencies to the project
Add Maven Compiler Plugin and Surefire Plugin
Create a feature file under src/test/resources
Create the classes for locators, actions, and utilitiesinsrc/main/java
Create a StepDefinition class in src/test/java
Create a Hook class in src/test/java
Create a Cucumber Runner class in the src/test/java directory
Run the tests from TestNG
Run the tests from testng.xml
Run the tests from Command Line
CucumberReport Generation
TestNG Report Generation
Project Structure
Step 1- Download and Install Java
Cucumber and Selenium need Java to be installed on the system to run the tests. Click here to know How to install Java.
Step 2 – Setup Maven
To build a test framework, we need to add a number of dependencies to the project. Click here to know How to install Maven.
Step 3 – Install Cucumber Eclipse Plugin (Only for Eclipse)
The cucumber plugin is an Eclipse plugin that allows eclipse to understand the Gherkin syntax. When we are working with cucumber we will write the feature files that contain Feature, Scenario, Given, When, Then, And, But, Tags, Scenario Outline, and Examples. By default, eclipse doesn’t understand these keywords so it doesn’t show any syntax highlighter. Cucumber Eclipse Plugin highlights the keywords present in Feature File. Refer to this tutorial to get more detail – How to setup Cucumber with Eclipse.
Step 4 – Create a new Maven Project
To create a new Maven project, go to the File -> New Project-> Maven-> Maven project-> Next -> Enter Group ID & Artifact ID -> Finish.
Step 5 – Create source folder src/test/resources to create test scenarios in the Feature file

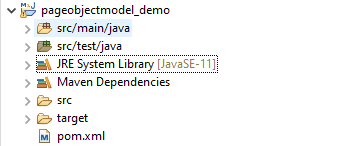

A new Maven Project is created with 2 folders – src/main/javaand src/test/java. To create test scenarios, we need a new source folder called – src/test/resources. To create this folder, right-click on test directory ->select New ->Directory, and then it shows Maven Source Directories as resources as shown below.
Double-click on the resources directory and a new source directory under your new Maven project is created as shown in the below image.
Step 6 – Add Selenium, TestNG, and Cucumber dependencies to the project
Step 7 – Add Maven Compiler Plugin and Surefire Plugin
The compiler plugin is used to compile the source code of a Maven project. This plugin has two goals, which are already bound to specific phases of the default lifecycle:
Step 8 – Create a feature file in the src/test/resources
Create a folder with name features. Now, create the feature file in this folder. The feature file should be saved with the extension .feature. This feature file contains the test scenarios created to test the application. The Test Scenarios are written in Gherkins language in the format of Given, When, Then, And, But.
Below is an example of Test Scenarios in the feature file. I have failed one test scenario intentionally – @MissingUsername.
Feature: Login to HRM Application
Background:
Given User is on HRMLogin page "https://opensource-demo.orangehrmlive.com/"
@ValidCredentials
Scenario: Login with valid credentials
When User enters username as "Admin" and password as "admin123"
Then User should be able to login sucessfully and new page open
@InvalidCredentials
Scenario Outline: Login with invalid credentials
When User enters username as "<username>" and password as "<password>"
Then User should be able to see error message "<errorMessage>"
Examples:
| username | password | errorMessage |
| Admin | admin12$$ | Invalid credentials |
| admin$$ | admin123 | Invalid credentials |
| abc123 | xyz$$ | Invalid credentials |
@MissingUsername
Scenario: Login with blank username
When User enters username as " " and password as "admin123"
Then User should be able to see a message "Required1" below Username
Step 9 – Create the classes for locators, actions, and utilities in src/main/java
Create folders – actions, locators, and utils in src/main/java.
Create a Java Class for each page where define WebElements as variables using Annotation @FindBy. Create another Java class that contains methods for actions performed on WebElements. Here, I’m going to create 2 classes for locators – LoginPageLocatorsand HomePageLocators as well as 2 classes for actions – LoginPageActionsand HomePageActions
The Locator class contains WebElements which are identified by @FindBy annotation as shown below:-
Action class contains methods for the action to be performed on the web elements identified in the locator class.
The initElements is a static method of PageFactory class that is used to initialize all the web elements located by @FindBy annotation. Only after the WebElements are initialized, they can be used in the methods to perform actions.
public Login(WebDriver driver) {
this.driver = driver;
// This initElements method will create all WebElements
PageFactory.initElements(driver, this);
}
Below is the sample code of the LoginPageLocators.
import org.openqa.selenium.WebElement;
import org.openqa.selenium.support.FindBy;
public class LoginPageLocators {
@FindBy(name = "username")
public WebElement userName;
@FindBy(name = "password")
public WebElement password;
@FindBy(xpath = "//*[@id='app']/div[1]/div/div[1]/div/div[2]/div[2]/form/div[1]/div/span")
public WebElement missingUsernameErrorMessage;
@FindBy(xpath = "//*[@id='app']/div[1]/div/div[1]/div/div[2]/div[2]/form/div[3]/button")
public WebElement login;
@FindBy(xpath = "//*[@id='app']/div[1]/div/div[1]/div/div[2]/div[2]/div/div[1]/div[1]/p")
public WebElement errorMessage;
}
Below is the sample code for the HomePageLocators.
import org.openqa.selenium.WebElement;
import org.openqa.selenium.support.FindBy;
public class HomePageLocators {
@FindBy(xpath = "//*[@id='app']/div[1]/div[1]/header/div[1]/div[1]/span/h6")
public WebElement homePageUserName;
}
Create the action classes for each web page. These action classes contain all the methods needed by the step definitions. In this case, I have created 2 action classes – LoginPageActions, HomePageActions
LoginPageActions
import org.example.locators.LoginPageLocators;
import org.example.utils.HelperClass;
import org.openqa.selenium.support.PageFactory;
public class LoginPageActions {
LoginPageLocators loginPageLocators = null;
public LoginPageActions() {
this.loginPageLocators = new LoginPageLocators();
PageFactory.initElements(HelperClass.getDriver(),loginPageLocators);
}
// Get the error message when username is blank
public String getMissingUsernameText() {
return loginPageLocators.missingUsernameErrorMessage.getText();
}
// Get the Error Message
public String getErrorMessage() {
return loginPageLocators.errorMessage.getText();
}
public void login(String strUserName, String strPassword) {
// Fill user name
loginPageLocators.userName.sendKeys(strUserName);
// Fill password
loginPageLocators.password.sendKeys(strPassword);
// Click Login button
loginPageLocators.login.click();
}
HomePageActions
import org.example.locators.HomePageLocators;
import org.example.utils.HelperClass;
import org.openqa.selenium.support.PageFactory;
public class HomePageActions {
HomePageLocators homePageLocators = null;
public HomePageActions() {
this.homePageLocators = new HomePageLocators();
PageFactory.initElements(HelperClass.getDriver(),homePageLocators);
}
// Get the User name from Home Page
public String getHomePageText() {
return homePageLocators.homePageUserName.getText();
}
}
Create a Helper class where we are initializing the web driver, initializing the web driver wait, defining the timeouts, and creating a private constructor of the class, it will declare the web driver, so whenever we create an object of this class, a new web browser is invoked.
import java.time.Duration;
import org.openqa.selenium.WebDriver;
import org.openqa.selenium.chrome.ChromeDriver;
import io.github.bonigarcia.wdm.WebDriverManager;
public class HelperClass {
private static HelperClass helperClass;
private static WebDriver driver;
public final static int TIMEOUT = 10;
private HelperClass() {
WebDriverManager.chromedriver().setup();
driver = new ChromeDriver();
driver.manage().timeouts().implicitlyWait(Duration.ofSeconds(TIMEOUT));
driver.manage().window().maximize();
}
public static void openPage(String url) {
driver.get(url);
}
public static WebDriver getDriver() {
return driver;
}
public static void setUpDriver() {
if (helperClass==null) {
helperClass = new HelperClass();
}
}
public static void tearDown() {
if(driver!=null) {
driver.close();
driver.quit();
}
helperClass = null;
}
}
Step 10 – Create a StepDefinition class in src/test/java
Create a Java Class called Definition where we will create the Test Code related to the Given, When, Then of Feature file in src/test/java.
Now, we need to create the Step Definition of the Feature File – LoginPageDefinitions.java.
import io.cucumber.java.en.Given;
import io.cucumber.java.en.Then;
import io.cucumber.java.en.When;
import org.example.actions.HomePageActions;
import org.example.actions.LoginPageActions;
import org.example.utils.HelperClass;
import org.testng.Assert;
public class LoginPageDefinitions {
LoginPageActions objLogin = new LoginPageActions();
HomePageActions objHomePage = new HomePageActions();
@Given("User is on HRMLogin page {string}")
public void loginTest(String url) {
HelperClass.openPage(url);
}
@When("User enters username as {string} and password as {string}")
public void goToHomePage(String userName, String passWord) {
// login to application
objLogin.login(userName, passWord);
// go the next page
}
@Then("User should be able to login successfully and new page open")
public void verifyLogin() {
// Verify home page
Assert.assertTrue(objHomePage.getHomePageText().contains("Dashboard"));
}
@Then("User should be able to see error message {string}")
public void verifyErrorMessage(String expectedErrorMessage) {
// Verify home page
Assert.assertEquals(objLogin.getErrorMessage(),expectedErrorMessage);
}
@Then("User should be able to see a message {string} below Username")
public void verifyMissingUsernameMessage(String message) {
Assert.assertEquals(objLogin.getMissingUsernameText(),message);
}
}
Step 11 – Create a Hook class in src/test/java
Create thehook class that contains the Before and After hook to initialize the web browser and close the web browser. I have added the code to take the screenshot of the failed scenario in @After Hook.
Below is the code for the Hooks class.
import org.openqa.selenium.OutputType;
import org.openqa.selenium.TakesScreenshot;
import com.example.utils.HelperClass;
import io.cucumber.java.After;
import io.cucumber.java.Before;
import io.cucumber.java.Scenario;
public class Hooks {
@Before
public static void setUp() {
HelperClass.setUpDriver();
}
@After
public static void tearDown(Scenario scenario) {
//validate if scenario has failed
if(scenario.isFailed()) {
final byte[] screenshot = ((TakesScreenshot) HelperClass.getDriver()).getScreenshotAs(OutputType.BYTES);
scenario.attach(screenshot, "image/png", scenario.getName());
}
HelperClass.tearDown();
}
}
Step 12 – Create a JUnit Cucumber Runner classin the src/test/java
Cucumber needs a TestRunner class to run the feature files. It is suggested to create a folder with the name of the runner in the src/test/java directory and create the Cucumber TestRunner class in this folder. Below is the code of the Cucumber TestRunner class.
Below is the code for CucumberRunnerTests class.
import io.cucumber.testng.AbstractTestNGCucumberTests;
import io.cucumber.testng.CucumberOptions;
@CucumberOptions(tags = "", features = "src/test/resources/features/LoginPage.feature", glue = "org.example.definitions",
plugin = {})
public class CucumberRunnerTests extends AbstractTestNGCucumberTests {
}
Note:- The name of the Runner class should end with Test otherwise we can’t run the tests using Command Line.
Step 13 – Run the tests from TestNG

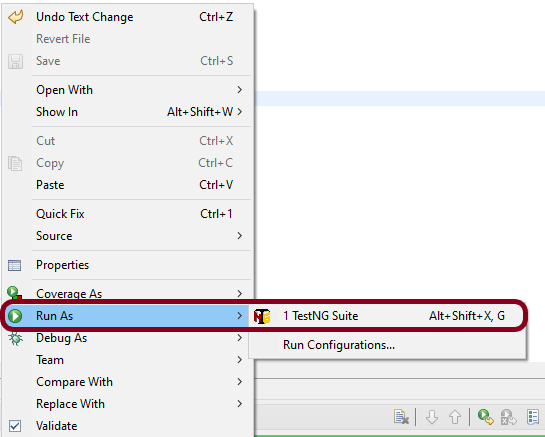

You can execute the test script by right-clicking on TestRunner class -> Run As TestNG. (Eclipse)
In the case of the IntelliJ project, right-click on the runner class and select Run ‘CucumberRunnerTests’.

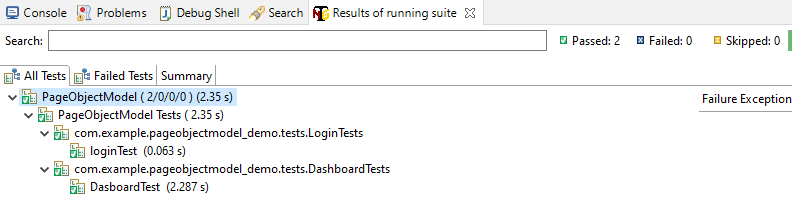

The output of the above program is
Step 14 – Run the tests from testng.xml

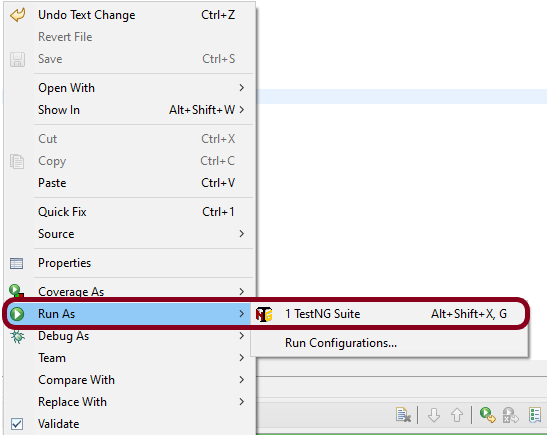

Create a TestNG.xml as shown below and run the tests as TestNG.
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE suite SYSTEM "https://testng.org/testng-1.0.dtd">
<suite name="Suite">
<test name="Cucumber with TestNG Test">
<classes>
<class name="org.example.runner.CucumberRunnerTests"/>
</classes>
</test> <!-- Test -->
</suite> <!-- Suite -->
The testng.xml is highlighted below:
Step 15 – Run the tests from Command Line
Run the below command in the command prompt to run the tests and to get the test execution report.
mvn clean test
The output of the above program is
Step 16 – Cucumber Report Generation
To get Cucumber Test Reports, add cucumber.properties under src/test/resources and add the below instruction in the file.
cucumber.publish.enabled=true
Below is the image of the Cucumber Report generated using the Cucumber Service.
In the above example, as we can see, one of the tests has failed. So, when a test fails, we have written the code to take a screenshot of the failed step. The Attached Image shows the image of the failed test. You can click on that to see the screenshot.
Step 17 – TestNG Report Generation

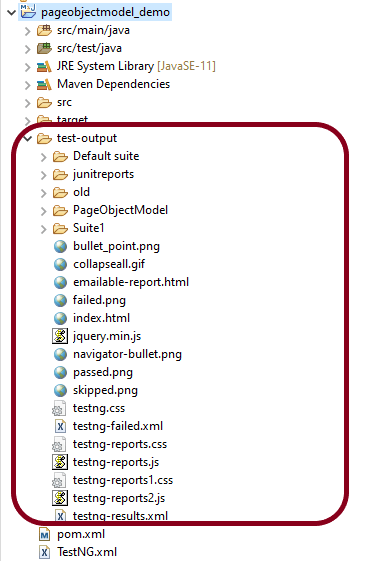

TestNG generates various types of reports under the target->surefire-reports folder like emailable-report.html, index.html, testng-results.xml.

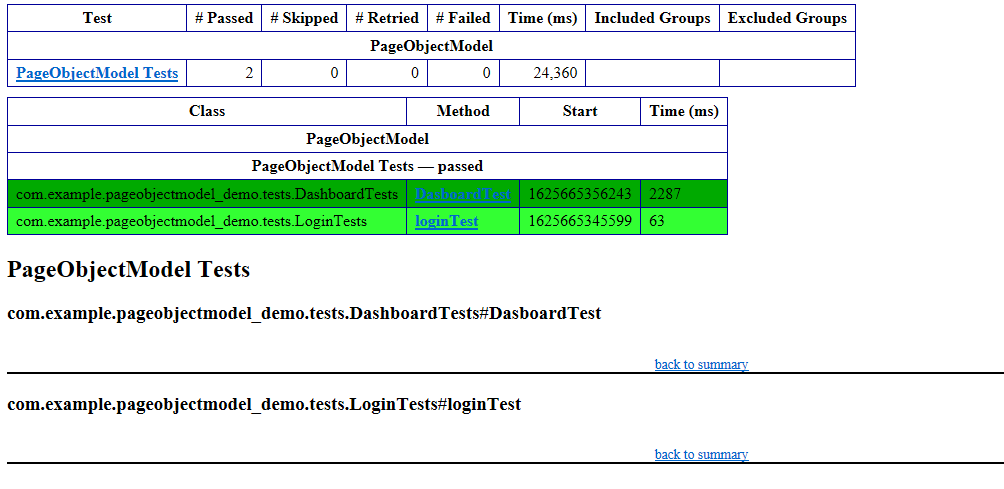

We are interested in the “emailable-report.html” report. Open “emailable-report.html“, as this is an HTML report, and open it with the browser. The below image shows emailable-report.html.
emailable-report.html
Index.html

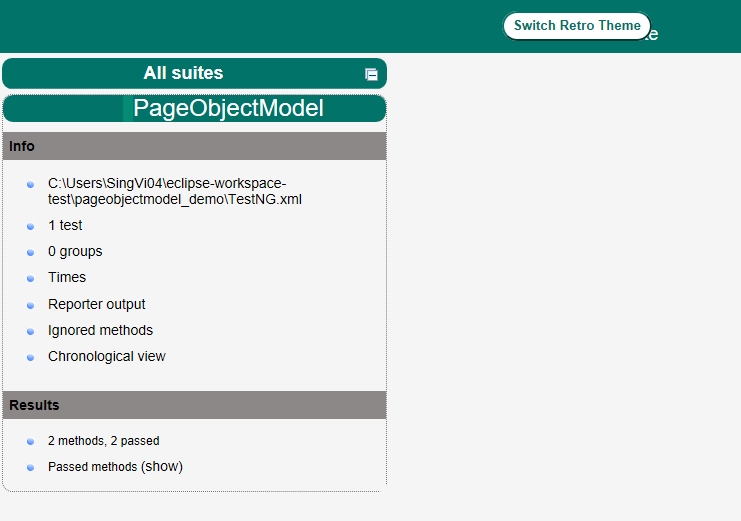

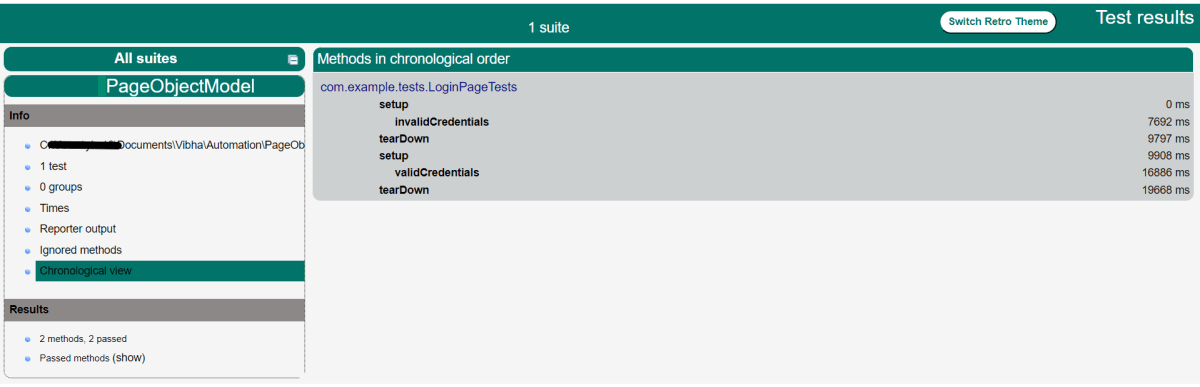

TestNG also produces an “index.html” report. The below image shows the index.html report.
That’s it! Congratulations on making it through this tutorial and hope you found it useful! Happy Learning!!
Page Object Model(POM) is an object design pattern in Selenium webdriver which tells how to organize the object repository. In this case, we refer to web elements as Objects. Page Object Model(POM) is not a Test Framework.
In the Page Object Model (POM), each web page is represented as a separate class. For example, consider HRM website. It has many web pages like Login , Dashboard , Assign Leave, Leave List, Timesheets, etc. Under this model, for each web page in the application, there should be a corresponding Page Class. This Page class will identify the WebElements of that web page and also contains Page methods that perform operations on those WebElements.
If a new web element is added or an existing web element is updated, then you can add or update that web element in object repository by navigating to class which has same name as webpage.
The object repository is independent of test cases, so we can use the same object repository for a different purpose with different tools. For example, we can integrate Page Object Model in Selenium with TestNG/JUnit for functional Testing and at the same time with JBehave/Cucumber for acceptance testing.
POM enhances test maintenance, readability and reducing code duplication.
In this tutorial, I’m creating a project using Page Object Model as Design Pattern and TestNG as the Test Automation Framework.
Steps to create a Page Object Model Project
Download and Install Java on system
Download and setup Eclipse IDE on system
Setup Maven
Create a new Maven Project
Add dependencies to pom.xml
Create Page Class for each page – LoginPage.Java and DashboardPage.java
Create tests for each Page – BaseTests, LoginTests and DashboardTests
Create a TestNG.XML
Run the tests from TestNG.xml
TestNG Report Generation
Step 1- Download and Install Java
Click here to know How to install Java. To check if Java is already installed on your machine, use the below command in the command line. This command will show the version of Java installed on your machine.
java -version
Step 2 – Download and setup Eclipse IDE on system
The Eclipse IDE (integrated development environment) provides strong support for Java developer. The Eclipse IDE for Java Developers distribution is designed to support standard Java development. It includes support for the Maven and Gradle build system and support for the Git version control system. Click here to know How to install Eclipse.
Step 3 – Setup Maven
To build a test framework, we need to add a number of dependencies to the project. It is very tedious and cumbersome process to add each dependency manually. So, to overcome this problem, we use a build management tool. Maven is a build management tool which is used to define project structure, dependencies, build, and test management. Click here to know How to install Maven.
To know if Maven is already installed or not on your machine, type this command in the command line. This command will show the version of Maven installed on your machine.
Step 6 – Create Page Class for each page – LoginPage.Java and DashboardPage.java
I want to test 2 pages – Login and Dashboard. So, I’m creating 2 seperate class. Each class will contain its web elements and methods of that page.
LoginPage.Java
import org.openqa.selenium.By;
import org.openqa.selenium.WebDriver;
public class LoginPage {
WebDriver driver;
By userName = By.name("txtUsername");
By password = By.name("txtPassword");
By titleText = By.id("logInPanelHeading");
By login = By.id("btnLogin");
public LoginPage(WebDriver driver) {
this.driver = driver;
}
// Set user name in textbox
public void setUserName(String strUserName) {
driver.findElement(userName).sendKeys(strUserName);
}
// Set password in password textbox
public void setPassword(String strPassword) {
driver.findElement(password).sendKeys(strPassword);
}
// Click on login button
public void clickLogin() {
driver.findElement(login).click();
}
// Get the title of Login Page
public String getLoginTitle() {
return driver.findElement(titleText).getText();
}
public void login(String strUserName, String strPasword) {
// Fill user name
this.setUserName(strUserName);
// Fill password
this.setPassword(strPasword);
// Click Login button
this.clickLogin();
}
}
DashboardPage.java
import org.openqa.selenium.By;
import org.openqa.selenium.WebDriver;
public class DashboardPage {
WebDriver driver;
By homePageUserName = By.id("welcome");
public DashboardPage(WebDriver driver) {
this.driver = driver;
}
// Get the User name from Home Page
public String getHomePageText() {
return driver.findElement(homePageUserName).getText();
}
}
Step 7 – Create tests for each Page – BaseTests, LoginTests and DashboardTests
Here, I have created 3 classes. BaseTest class to contain startUp and tearDown methods. These methods will run once before the after of every class. LoginTests and DashboardTests classes contain the tests related to LoginPage and DashboardPage respectively.
BaseTest
import java.util.concurrent.TimeUnit;
import org.openqa.selenium.WebDriver;
import org.openqa.selenium.firefox.FirefoxDriver;
import org.testng.annotations.AfterClass;
import org.testng.annotations.BeforeClass;
import com.example.pageobjectmodel_demo.pages.DashboardPage;
import com.example.pageobjectmodel_demo.pages.LoginPage;
public class BaseTest {
public static WebDriver driver;
LoginPage objLogin;
DashboardPage objDashboardPage;
@BeforeClass
public void setup() {
System.setProperty("webdriver.gecko.driver",
"C:\\Users\\Vibha\\Software\\geckodriver-v0.26.0-win64\\geckodriver.exe");
driver = new FirefoxDriver();
driver.manage().window().maximize();
driver.manage().timeouts().implicitlyWait(10, TimeUnit.SECONDS);
driver.get("https://opensource-demo.orangehrmlive.com/");
}
@AfterClass
public void close() {
driver.close();
}
}
LoginTests
import org.testng.Assert;
import org.testng.annotations.Test;
import com.example.pageobjectmodel_demo.pages.DashboardPage;
import com.example.pageobjectmodel_demo.pages.LoginPage;
public class LoginTests extends BaseTest {
LoginPage objLogin;
DashboardPage objDashboardPage;
@Test(priority = 0)
public void loginTest() {
// Create Login Page object
objLogin = new LoginPage(driver);
// Verify login page text
String loginPageTitle = objLogin.getLoginTitle();
Assert.assertTrue(loginPageTitle.contains("LOGIN Panel"));
}
}
DashboardTests
import org.testng.Assert;
import org.testng.annotations.Test;
import com.example.pageobjectmodel_demo.pages.DashboardPage;
import com.example.pageobjectmodel_demo.pages.LoginPage;
public class DashboardTests extends BaseTest {
LoginPage objLogin;
DashboardPage objDashboardPage;
@Test(priority = 0)
public void DasboardTest() {
objLogin = new LoginPage(driver);
// login to application
objLogin.login("Admin", "admin123");
// go the dashboard page
objDashboardPage = new DashboardPage(driver);
// Verify dashboard page
Assert.assertTrue(objDashboardPage.getHomePageText().contains("Welcome"));
}
}
Step 8 – Create a TestNG.XML
Here, I have mentioned 2 test classes. So, when I will run the tests from TestNG.xml, it will run the tests of both the classes. If will mention any one class, then the test of that particular class will be executed.
<?xml version = "1.0"encoding = "UTF-8"?>
<!DOCTYPE suite SYSTEM "http://testng.org/testng-1.0.dtd">
<suite name = "PageObjectModel">
<test name = "PageObjectModel Tests">
<classes>
<class name = "com.example.pageobjectmodel_demo.tests.LoginTests"/>
<class name = "com.example.pageobjectmodel_demo.tests.DashboardTests"/>
</classes>
</test>
</suite>
Step 9 – Run the tests from TestNG.xml
Right click on TestNG.xml and select Run As TestNG Suite.
The execution status looks like as shown below.
Step 10 – TestNG Report Generation
Once the execution is finished, refresh the project. It will create a test-output folder containing various reports generated by TestNG. Below is the screenshot of the report folder.
Image of Index.html report
Image of emailable-report.html
Cheers! Congratulations on making it through this tutorial and hope you found it useful! Happy Learning!!
In this tutorial, I’ll create a BDD Framework for the testing of web applications using the Page Object Model.
This framework consists of
Cucumber Java – 7.6.0
Cucumber JUnit4 – 7.6.0
Java 11
Maven – 3.8.6
Selenium – 4.3.0
JUnit – 4.13.2
What Is Page Object Model (POM)?
The Page Object model is an object design pattern in Selenium, where web pages are represented as classes, the various elements on the page are defined as variables in the class and all possible user interactions can then be implemented as methods in the class.
What is Cucumber?
Cucumber is one such open-source tool, which supports Behavior Driven Development(BDD). In simple words, Cucumber can be defined as a testing framework, driven by plain English. It serves as documentation, automated tests, and development aid – all in one.
Steps to setup Cucumber Test Automation Framework using Page Object Model
Download and Install Java on the system
Download and setup Eclipse IDE on the system
Setup Maven on System
Install Cucumber Eclipse Plugin (Only for Eclipse IDE)
Create a new Maven Project
Create a source folder – src/test/resources to create test scenarios in the Feature file
AddSelenium, Cucumberand JUnit4 dependencies to the project
Add Maven Compiler Plugin and Surefire Plugin
Create a feature file under src/test/resources
Create the classes for locators, actions and utilitiesinsrc/main/java
Create a Java Class called Definitionwhere we will create the Test Code related to Given, When, Then of Feature file in src/test/java.
Create a Hook class to contain the initialization and closing of browser in src/test/java
Create a Cucumber Runner class in the src/test/java directory
Run the tests from JUnit
Run the tests from Command Line
CucumberReport Generation
Project Structure
Step 1- Download and Install Java
Cucumber and Selenium need Java to be installed on the system to run the tests. Click here to know How to install Java.
Step 2 – Download and setup Eclipse IDE on the system
The Eclipse IDE (integrated development environment) provides strong support for Java developers. Click here to know How to install Eclipse.
Step 3 – Setup Maven
To build a test framework, we need to add a number of dependencies to the project. Click here to know How to install Maven.
Step 4 – Install Cucumber Eclipse Plugin
The cucumber plugin is an Eclipse plugin that allows eclipse to understand the Gherkin syntax. When we are working with cucumber we will write the feature files that contain Feature, Scenario, Given, When, Then, And, But, Tags, Scenario Outline, and Examples. By default, eclipse doesn’t understand these keywords so it doesn’t show any syntax highlighter. Cucumber Eclipse Plugin highlights the keywords present in Feature File. Refer to this tutorial to get more detail – How to setup Cucumber with Eclipse.
Step 5 – Create a new Maven Project
To create a new Maven project, go to the File -> New Project-> Maven-> Maven project-> Next -> Enter Group ID & Artifact ID -> Finish.
Step 6 – Create source folder src/test/resources to create test scenarios in the Feature file
A new Maven Project is created with 2 folders – src/main/java and src/test/java. To create test scenarios, we need a new source folder called – src/test/resources. To create this folder, right-click on your maven project ->select New ->Java and then Source Folder.
Mention the source folder name as src/test/resources and click the Next button. This will create a source folder under your new Maven project as shown in the below image.
Step 7 – Add Selenium, JUnit4, and Cucumber dependencies to the project
Step 8 – Add Maven Compiler Plugin and Surefire Plugin
The compiler plugin is used to compile the source code of a Maven project. This plugin has two goals, which are already bound to specific phases of the default lifecycle:
Step 9 – Create a feature file in the src/test/resourcesdirectory
Create a folder with name features. Now, create the feature file in this folder. The feature file should be saved with extension .feature. This feature file contains the test scenarios created to test the application. The Test Scenarios are written in Gherkins language in the format of Given, When, Then, And, But.
Below is an example of Test Scenarios in the feature file. I have failed one test scenario intentionally – @MissingUsername.
Feature: Login to HRM Application
Background:
Given User is on HRMLogin page "https://opensource-demo.orangehrmlive.com/"
@ValidCredentials
Scenario: Login with valid credentials
When User enters username as "Admin" and password as "admin123"
Then User should be able to login sucessfully and new page open
@InvalidCredentials
Scenario Outline: Login with invalid credentials
When User enters username as "<username>" and password as "<password>"
Then User should be able to see error message "<errorMessage>"
Examples:
| username | password | errorMessage |
| Admin | admin12$$ | Invalid credentials |
| admin$$ | admin123 | Invalid credentials |
| abc123 | xyz$$ | Invalid credentials |
@MissingUsername
Scenario Outline: Login with blank username
When User enters username as " " and password as "admin123"
Then User should be able to see a message "Required1" below Username
Step 10 – Create the classes for locators, actions and utilities in src/main/java
Create a Java Class for each page where define WebElements as variables using Annotation @FindBy . Create another Java class that contains methods for actions performed on WebElements. Here, I’m going to create 2 classes for locators – LoginPageLocators and HomePageLocators.java as well as 2 classes for actions – LoginPageActions and HomePageActions
The Locator class contains WebElements which are identified by @FindBy annotation as shown below:-
Action class contains methods for the action to be performed on the web elements identified in the locator class as shown below:-
public void login(String strUserName, String strPassword) {
// Fill user name
this.setUserName(strUserName);
// Fill password
this.setPassword(strPassword);
// Click Login button
this.clickLogin();
}
}
The initElements is a static method of PageFactory class that is used to initialize all the web elements located by @FindBy annotation. Only after the WebElements are initialized, they can be used in the methods to perform actions.
public Login(WebDriver driver) {
this.driver = driver;
// This initElements method will create all WebElements
PageFactory.initElements(driver, this);
}
Below is the sample code of the LoginPageLocators.
import org.openqa.selenium.WebElement;
import org.openqa.selenium.support.FindBy;
public class LoginPageLocators {
@FindBy(name = "username")
public WebElement userName;
@FindBy(name = "password")
public WebElement password;
@FindBy(xpath = "//*[@id='app']/div[1]/div/div[1]/div/div[2]/div[2]/form/div[1]/div/span")
public WebElement missingUsernameErrorMessage;
@FindBy(xpath = "//*[@id='app']/div[1]/div/div[1]/div/div[2]/div[2]/form/div[3]/button")
public WebElement login;
@FindBy(xpath = "//*[@id='app']/div[1]/div/div[1]/div/div[2]/div[2]/div/div[1]/div[1]/p")
public WebElement errorMessage;
}
Below is the sample code for the HomePageLocators.
import org.openqa.selenium.WebElement;
import org.openqa.selenium.support.FindBy;
public class HomePageLocators {
@FindBy(xpath = "//*[@id='app']/div[1]/div[2]/div[2]/div/div[1]/div[1]/div[1]/h5")
public WebElement homePageUserName;
}
Create the action classes for each web page. These action classes contain all the methods needed by the step definitions. In this case, I have created 2 action classes – LoginPageActions, HomePageActions
LoginPageActions
import org.openqa.selenium.support.PageFactory;
import com.example.locators.LoginPageLocators;
import com.example.utils.HelperClass;
public class LoginPageActions {
LoginPageLocators loginPageLocators = null;
public LoginPageActions() {
this.loginPageLocators = new LoginPageLocators();
PageFactory.initElements(HelperClass.getDriver(),loginPageLocators);
}
// Set user name in textbox
public void setUserName(String strUserName) {
loginPageLocators.userName.sendKeys(strUserName);
}
// Set password in password textbox
public void setPassword(String strPassword) {
loginPageLocators.password.sendKeys(strPassword);
}
// Click on login button
public void clickLogin() {
loginPageLocators.login.click();
}
// Get the error message when username is blank
public String getMissingUsernameText() {
return loginPageLocators.missingUsernameErrorMessage.getText();
}
// Get the Error Message
public String getErrorMessage() {
return loginPageLocators.errorMessage.getText();
}
public void login(String strUserName, String strPassword) {
// Fill user name
this.setUserName(strUserName);
// Fill password
this.setPassword(strPassword);
// Click Login button
this.clickLogin();
}
}
HomePageActions
import org.openqa.selenium.support.PageFactory;
import com.example.locators.HomePageLocators;
import com.example.utils.HelperClass;
public class HomePageActions {
HomePageLocators homePageLocators = null;
public HomePageActions() {
this.homePageLocators = new HomePageLocators();
PageFactory.initElements(HelperClass.getDriver(),homePageLocators);
}
// Get the User name from Home Page
public String getHomePageText() {
return homePageLocators.homePageUserName.getText();
}
}
Create a Helper class where we are initializing the web driver, initializing the web driver wait, defining the timeouts, and creating a private constructor of the class, within it will declare the web driver, so whenever we create an object of this class, a new web browser is invoked.
import java.time.Duration;
import org.openqa.selenium.WebDriver;
import org.openqa.selenium.chrome.ChromeDriver;
import io.github.bonigarcia.wdm.WebDriverManager;
public class HelperClass {
private static HelperClass helperClass;
private static WebDriver driver;
public final static int TIMEOUT = 10;
private HelperClass() {
WebDriverManager.chromedriver().setup();
driver = new ChromeDriver();
driver.manage().timeouts().implicitlyWait(Duration.ofSeconds(TIMEOUT));
driver.manage().window().maximize();
}
public static void openPage(String url) {
driver.get(url);
}
public static WebDriver getDriver() {
return driver;
}
public static void setUpDriver() {
if (helperClass==null) {
helperClass = new HelperClass();
}
}
public static void tearDown() {
if(driver!=null) {
driver.close();
driver.quit();
}
helperClass = null;
}
}
Step 11 – Create a Java Class called Definition where we will create the Test Code related to Given, When, Then of Feature file in src/test/java
Now, we need to create the Step Definition of the Feature File – LoginPageDefinitions.java.
import org.junit.Assert;
import com.example.actions.ForgotPasswordActions;
import com.example.actions.HomePageActions;
import com.example.actions.LoginPageActions;
import com.example.utils.HelperClass;
import io.cucumber.java.en.Given;
import io.cucumber.java.en.Then;
import io.cucumber.java.en.When;
public class LoginPageDefinitions {
LoginPageActions objLogin = new LoginPageActions();
HomePageActions objHomePage = new HomePageActions();
@Given("User is on HRMLogin page {string}")
public void loginTest(String url) {
HelperClass.openPage(url);
}
@When("User enters username as {string} and password as {string}")
public void goToHomePage(String userName, String passWord) {
// login to application
objLogin.login(userName, passWord);
// go the next page
}
@Then("User should be able to login sucessfully and new page open")
public void verifyLogin() {
// Verify home page
Assert.assertTrue(objHomePage.getHomePageText().contains("Employee Information"));
}
@Then("User should be able to see error message {string}")
public void verifyErrorMessage(String expectedErrorMessage) {
// Verify home page
Assert.assertEquals(objLogin.getErrorMessage(),expectedErrorMessage);
}
@Then("User should be able to see a message {string} below Username")
public void verifyMissingUsernameMessage(String message) {
Assert.assertEquals(objLogin.getMissingUsernameText(),message);
}
}
Step 12 – Create a Hook class to contain the initialization and closing of browser in src/test/java
Create the hook class that contains the Before and After hook to initialize the web browser and close the web browser. I have added the code to take the screenshot of the failed scenario in @After Hook.
import org.openqa.selenium.OutputType;
import org.openqa.selenium.TakesScreenshot;
import com.example.utils.HelperClass;
import io.cucumber.java.After;
import io.cucumber.java.Before;
import io.cucumber.java.Scenario;
public class Hooks {
@Before
public static void setUp() {
HelperClass.setUpDriver();
}
@After
public static void tearDown(Scenario scenario) {
//validate if scenario has failed
if(scenario.isFailed()) {
final byte[] screenshot = ((TakesScreenshot) HelperClass.getDriver()).getScreenshotAs(OutputType.BYTES);
scenario.attach(screenshot, "image/png", scenario.getName());
}
HelperClass.tearDown();
}
}
Step 13 – Create a JUnit Cucumber Runner class to execute the test scenariosin the src/test/java directory
Cucumber needs a TestRunner class to run the feature files. It is suggested to create a folder with the name of the runner in the src/test/java directory and create the Cucumber TestRunner class in this folder. Below is the code of the Cucumber TestRunner class.
import org.junit.runner.RunWith;
import io.cucumber.junit.Cucumber;
import io.cucumber.junit.CucumberOptions;
@RunWith(Cucumber.class)
@CucumberOptions(tags = "", features = "src/test/resources/features/LoginPage.feature", glue = "com.example.definitions",
plugin = {})
public class CucumberRunnerTests {
}
Note:- The name of the Runner class should end with Test otherwise we can’t run the tests using Command Line.
Step 14 – Run the tests from JUnit
You can execute the test script by right-clicking on TestRunner class -> Run As JUnit.
Step 15 – Run the tests from Command Line
Run the below command in the command prompt to run the tests and to get the test execution report.
mvn clean test
Step 16 – Cucumber Report Generation
To get Cucumber Test Reports, add cucumber.properties under src/test/resources and add the below instruction in the file.
cucumber.publish.enabled=true
Below is the image of the Cucumber Report generated using Cucumber Service.
In the above example, as we can see, one of the tests has failed. So, when a test fails, we have written the code to take a screenshot of the failed step. The highlighted box above shows the image of the failed test. You can click on that to see the screenshot.
That’s it! Congratulations on making it through this tutorial and hope you found it useful! Happy Learning!!
Page Object model is an object design pattern in Selenium, where web pages are represented as classes, and the various elements on the page are defined as variables in the class and all possible user interactions can then be implemented as methods in the class.
The benefit is that if there is any change in the UI for the page, the tests themselves don’t need to change, only the code within the page object needs to change. Subsequently all changes to support that new UI are located in one place.
The Page Object Design Pattern provides the following advantages:
1. Readable – There is a clean separation between test code and page specific code such as locators and methods.
2. Maintainability -In this model, separate classes are created for different pages of a web application like login page, the home page, employee detail page, change password page, etc. So, if there is any change in any element of a website then we only need to make changes in one class, and not in all classes.
3. Reusable – If multiple test scripts use the same web elements, then we need not write code to handle the web element in every test script. Placing it in a separate page class makes it reusable by making it accessible by any test script.
4. Easy project Structure – Its project structure is quite easy and understandable.
5. PageFactory – It can use PageFactory in the page object model in order to initialize the web element and store elements in the cache.
In case there are lots of web elements on a page, then the object repository class for a page can be separated from the class that includes methods for the corresponding page.
Example: If the New Customer page has many input fields. In that case, there can be 2 different classes. One class called NewCustomerObjects.java that forms the object repository for the UI elements on the register accounts page.
A separate class file NewCustomerMethods.java extending or inheriting NewCustomerObjects that includes all the methods performing different actions on the page could be created.
Consider the below script to login to an application and navigate to home page.
This is a small script. Therefore, script maintenance and readability looks very easy.
Imagine there are 50 different tests present in this script. In that case, the readability of the script decreases as well as maintenance become very difficult.
Scenario
Launch the Firefox browser.
The demo website opens in the browser.
Verify the Login Page
Enter username and Password and login to the demo site.
PageFactory is a way of implementing the “Page Object Model”. Here, we follow the principle of separation of Page Object Repository and Test Methods. It is an inbuilt concept of Page Object Model which is very optimized.
1. The annotation @FindBy is used in Pagefactory to identify an element while POM without Pagefactory uses the driver.findElement() method to locate an element.
2. The second statement for Pagefactory after @FindBy is assigning an <element name> of type WebElement class that works exactly similar to the assignment of an element name of type WebElement class as a return type of the method driver.findElement() that is used in usual POM (userName in this example).
3. Below is a code snippet of non PageFactory Mode to set Firefox driver path. A WebDriver instance is created with the name driver and the FirefoxDriver is assigned to the ‘driver’. The same driver object is then used to launch the demo website, locate the webelements and to perform various operations
Basically, here the driver instance is created initially and every web element is freshly initialized each time when there is a call to that web element using driver.findElement() or driver.findElements().
System.setProperty("webdriver.gecko.driver", "src\\test\\resources\\webdrivers\\window\\geckodriver.exe");
driver = new FirefoxDriver();
driver.manage().window().maximize();
driver.manage().timeouts().implicitlyWait(10, TimeUnit.SECONDS);
driver.get("https://opensource-demo.orangehrmlive.com/");
But with POM with PageFactory approach, all the elements are initialized with initElements() without explicitly initializing each web element.
The initElements is a static method of PageFactory class which is used to initialize all the web elements located by @FindBy annotation. Thus, instantiating the Page classes easily. It is used to initialize the WebElements declared, using driver instance from the main class. In other words, WebElements are created using the driver instance. Only after the WebElements are initialized, they can be used in the methods to perform actions.
public Login(WebDriver driver) {
this.driver = driver;
// This initElements method will create all WebElements
PageFactory.initElements(driver, this);
}
Steps To Create POM With Page Factory Real-Time Example
3.2 Create methods for actions performed on WebElements.
Below actions are performed on WebElements in Login Page:
Get Text on Login Page
Type action on the Username field.
Type action in the Password field.
Click action on the Login Button
Note: A constructor has to be created in each of the class in the Page Layer, in order to get the driver instance from the Main class in Test Layer and also to initialize WebElements(Page Objects) declared in the page class using PageFactory.InitElement().
Login Page
package PageObjectModel;
import org.openqa.selenium.WebDriver;
import org.openqa.selenium.WebElement;
import org.openqa.selenium.support.FindBy;
import org.openqa.selenium.support.PageFactory;
public class Login {
/**
*
* All WebElements are identified by @FindBy annotation
*
*/
WebDriver driver;
@FindBy(name = "txtUsername")
WebElement userName;
@FindBy(name = "txtPassword")
WebElement password;
@FindBy(id = "logInPanelHeading")
WebElement titleText;
@FindBy(id = "btnLogin")
WebElement login;
public Login(WebDriver driver) {
this.driver = driver;
// This initElements method will create all WebElements
PageFactory.initElements(driver, this);
}
// Set user name in textbox
public void setUserName(String strUserName) {
userName.sendKeys(strUserName);
}
// Set password in password textbox
public void setPassword(String strPassword) {
password.sendKeys(strPassword);
}
// Click on login button
public void clickLogin() {
login.click();
}
// Get the title of Login Page
public String getLoginTitle() {
return titleText.getText();
}
public void login(String strUserName, String strPasword) {
// Fill user name
this.setUserName(strUserName);
// Fill password
this.setPassword(strPasword);
// Click Login button
this.clickLogin();
}
}
HomePage. java
package PageObjectModel;
import org.openqa.selenium.WebDriver;
import org.openqa.selenium.WebElement;
import org.openqa.selenium.support.FindBy;
import org.openqa.selenium.support.PageFactory;
public class HomePage {
WebDriver driver;
@FindBy(id = "welcome")
WebElement homePageUserName;
public HomePage(WebDriver driver) {
this.driver = driver;
// This initElements method will create all WebElements
PageFactory.initElements(driver, this);
}
// Get the User name from Home Page
public String getHomePageText() {
return homePageUserName.getText();
}
}
Step 4 – Create test class for the tests of these pages – POMTest
POMTest.java
package PageObjectModel;
import java.util.concurrent.TimeUnit;
import org.openqa.selenium.WebDriver;
import org.openqa.selenium.firefox.FirefoxDriver;
import org.testng.Assert;
import org.testng.annotations.AfterTest;
import org.testng.annotations.BeforeTest;
import org.testng.annotations.Test;
public class POMTest {
WebDriver driver;
Login objLogin;
HomePage objHomePage;
@BeforeTest
public void setup() {
System.setProperty("webdriver.gecko.driver", "src\\test\\resources\\webdrivers\\window\\geckodriver.exe");
driver = new FirefoxDriver();
driver.manage().window().maximize();
driver.manage().timeouts().implicitlyWait(10, TimeUnit.SECONDS);
driver.get("https://opensource-demo.orangehrmlive.com/");
}
/**
*
* This test go to https://opensource-demo.orangehrmlive.com/ Verify login page
* title as LOGIN Panel Login to application Verify the home page using welcome
* message
*
*/
@Test(priority = 0)
public void loginTest() {
// Create Login Page object
objLogin = new Login(driver);
// Verify login page text
String loginPageTitle = objLogin.getLoginTitle();
Assert.assertTrue(loginPageTitle.contains("LOGIN Panel"));
}
@Test(priority = 1)
public void HomeTest() {
// login to application
objLogin.login("Admin", "admin123");
// go the next page
objHomePage = new HomePage(driver);
// Verify home page
Assert.assertTrue(objHomePage.getHomePageText().contains("Welcome"));
}
@AfterTest
public void close() {
driver.close();
}
}
Step 5 – To run the test, right click and select as Run As and then select TestNG Test.
Step 6 – Create TestNG.xml
You can add TestNG.xml and run the tests from there also.
<?xml version = "1.0"encoding = "UTF-8"?>
<!DOCTYPE suite SYSTEM "http://testng.org/testng-1.0.dtd">
<suite name = "PageObjectModel">
<test name = "PageObjectModel Tests">
<classes>
<class name = "com.example.pageobjectmodel.tests.POMTest"/>
</classes>
</test>
</suite>
Step 7 – Run the tests from TestNG.xml
Right click on TestNG.xml and select Run As TestNG Suite.
The execution status looks like as shown below.
Step 8 -TestNG Report Generation
Once the execution is finished, refresh the project. It will create a test-output folder containing various reports generated by TestNG. Below is the screenshot of the report folder.
Serenity BDD is an open-source library that aims to make the idea of living documentation a reality.
Serenity BDD helps you write cleaner and more maintainable automated acceptance and regression tests faster. Serenity also uses the test results to produce illustrated, narrative reports that document and describe what your application does and how it works. Serenity tells you not only what tests have been executed, but more importantly, what requirements have been tested.
One key advantage of using Serenity BDD is that you do not have to invest time in building and maintaining your own automation framework.
Serenity BDD provides strong support for different types of automated acceptance testing, including:
Rich built-in support for web testing with Selenium.
REST API testing with Rest Assured.
Highly readable, maintainable, and scalable automated testing with the Screenplay pattern.
Getting started Cucumber 6 with Serenity BDD
Cucumberis a popular tool for automating BDD-style acceptance criteria.
Serenity seamlessly supports Cucumber 2.x, Cucumber 5, and Cucumber 6. However, this flexibility requires a little tweaking in the build dependencies.
If you are using Maven, you need to do the following:
exclude the default cucumber-core dependency from your serenity-core dependency
Replace your serenity-cucumber dependency with the serenity-cucumber5 dependency
Add dependencies on the Cucumber 6.x version of cucumber-java and cucumber-junit into your project
Project Structure
Relationship between Web Application, Serenity BDD, Cucumber, and Selenium
Implementation Steps
Step 1: Add Serenity, Cucumber, JUnit4, and Selenium dependencies to the Maven project
The pom.xml will look like something as shown below.
Step 2: Create a Feature File under src/test/resources
A Feature File is an entry point to the Cucumber tests. This is a file where you will describe your tests in Descriptive language (Like English). A feature file can contain a scenario or can contain many scenarios in a single feature file. Below is an example of a Feature file.
Feature: Login Page
@ValidCredentials
Scenario: Login with valid credentials
Given User is on Home page
When User enters username as "Admin"
And User enters password as "admin123"
Then User should be able to login successfully
@InValidCredentials
Scenario Outline: Login with invalid credentials
Given User is on Home page
When User enters username as '<username>'
And User enters password as '<password>'
Then User should be able to see error message '<errorMessage>'
Examples:
| username | password | errorMessage |
| $$$$$ | ££££££££ | Invalid credentials |
| admin | Admin123 | Invalid credentials |
| Admin123 | admin | Invalid credentials |
Step 3: Create the Step Definition class
Lean Page Objects and Action Classes
The glue code shown below uses Serenity step libraries as action classes to make the tests easier to read and to improve maintainability.
These classes declare using the Serenity @Steps annotation. The @Steps annotation tells Serenity to create a new instance of the class, and inject any other steps or page objects that this instance might need.
Each action class models a particular facet of user behavior: navigating to a particular page, performing a search, or retrieving the results of a search. These classes design to be small and self-contained, which makes them more stable and easier to maintain.
LoginPageDefinitioncontains the steps to open the web browser, enter the username, enter the password and click on the Login Button
package com.example.stepdefintions;
import org.junit.Assert;
import com.example.steps.StepDashboardPage;
import com.example.steps.StepLoginPage;
import io.cucumber.java.en.Given;
import io.cucumber.java.en.Then;
import io.cucumber.java.en.When;
import net.thucydides.core.annotations.Steps;
public class LoginPageDefinitions {
@Steps
StepLoginPage loginPage;
@Steps
StepDashboardPage dashPage;
@Given("User is on Home page")
public void openApplication() {
loginPage.open();
System.out.println("Page is opened");
}
@When("User enters username as {string}")
public void enterUsername(String userName) {
System.out.println("Enter Username");
loginPage.inputUserName(userName);
}
@When("User enters password as {string}")
public void enterPassword(String passWord) {
loginPage.inputPassword(passWord);
loginPage.clickLogin();
}
@Then("User should be able to login successfully")
public void clickOnLoginButton() {
dashPage.loginVerify();
}
@Then("User should be able to see error message {string}")
public void unsucessfulLogin(String expectedErrorMessage) throws InterruptedException {
String actualErrorMessage = loginPage.errorMessage();
Assert.assertEquals(expectedErrorMessage, actualErrorMessage);
}
}
This annotation lets you define a URL or a set of URLs that work with a particular page.
StepLoginPage is created by extending it from PageObject class. In this class, $() method used below, which locates a web element using a By locator or an XPath or CSS expression. This class is responsible for uniquely locating elements on the page, and it does this by defining locators or occasionally by resolving web elements dynamically.
import org.openqa.selenium.By;
import net.serenitybdd.core.pages.PageObject;
import net.thucydides.core.annotations.Step;
public class StepLoginPage extends PageObject {
@Step("Enter Username")
public void inputUserName(String userName) {
$(By.name("username")).sendKeys((userName));
}
@Step("Enter Password")
public void inputPassword(String passWord) {
$(By.name("password")).sendKeys((passWord));
}
@Step("Click Submit Button")
public void clickLogin() {
$(By.xpath("//*[@id='app']/div[1]/div/div[1]/div/div[2]/div[2]/form/div[3]/button")).click();
}
@Step("Error Message on unsuccessful login")
public String errorMessage() {
String actualErrorMessage = $(By.xpath("//*[@id='app']/div[1]/div/div[1]/div/div[2]/div[2]/div/div[1]/div[1]/p")).getText();
return actualErrorMessage;
}
}
StepDashboardPageis also created by extending Page Object Model. Here, we are verifying the Dashboard page
import org.openqa.selenium.By;
import org.junit.Assert;
import net.serenitybdd.core.pages.PageObject;
public class StepDashboardPage extends PageObject{
public void loginVerify() {
String dashboardTitle = $(By.xpath("//*[@id='app']/div[1]/div[1]/header/div[1]/div[1]/span/h6")).getText();
Assert.assertTrue(dashboardTitle.contains("Dashboard"));
}
}
Step4: Create Serenity Test Runner under src/test/java
We cannot run a Feature file on its own in a cucumber-based framework. We need to create a Java class, which will run the Feature File. It is the starting point for JUnit to start executing the tests. TestRunner class creates under src/test/java. When you run the tests with serenity, you use the CucumberWithSerenity test runner. If the feature files are not in the same package as the test runner class, you also need to use the @CucumberOptions class to provide the root directory where the feature files found
import org.junit.runner.RunWith;
import io.cucumber.junit.CucumberOptions;
import net.serenitybdd.cucumber.CucumberWithSerenity;
@RunWith(CucumberWithSerenity.class)
@CucumberOptions(plugin = { "pretty" }, features = "src/test/resources/features/LoginPage.feature",
glue="com.example.stepdefintions")
public class SerenityRunnerTest {
}
Step 5: Create serenity.conf (Configuration File)
Serenity uses serenity.conf file in thesrc/test/resources directory to configure test execution options. serenity.config can also contain the environment URL and other options like headless mode and soon.
webdriver {
driver = chrome
use.driver.service.pool = false
}
headless.mode = false
#
# Chrome options can be defined using the chrome.switches property
#
chrome.switches="""--start-maximized;--test-type;--no-sandbox;--ignore-certificate-errors;
--disable-popup-blocking;--disable-default-apps;--disable-extensions-file-access-check;
--incognito;--disable-infobars,--disable-gpu"""
#
# Define drivers for different platforms. Serenity will automatically pick the correct driver for the current platform
#
environments {
default {
webdriver.base.url = "https://opensource-demo.orangehrmlive.com/"
}
dev {
webdriver.base.url = "https://opensource-demo.orangehrmlive.com/dev"
}
staging {
webdriver.base.url = "https://opensource-demo.orangehrmlive.com/staging"
}
prod {
webdriver.base.url = "https://opensource-demo.orangehrmlive.com/prod"
}
}
Step 6: Executing the tests as JUnit Tests
We can run the tests as JUnit tests. Right-click on the Runner class and select Run As Junit Test.
Step 7: Executing the tests through the command line
You can run the tests from the command line by using the below command:
mvn clean verify
By default, the tests will run using Firefox. You can run them in Chrome by overriding the driver system property, e.g.
$ mvn clean verify -Ddriver=chrome
The test execution status looks like something this
Step 8: View the Serenity Reports
The test report generated by Serenity is placed under target/site/serenity.
There are a lot of reports under the Serenity folder. But we are interested in 2 reports – index.html and serenity-summary.html.
Index.html
Serenity-Summary.html
Congratulations on making it through this tutorial and hope you found it useful! Happy Learning!! Cheers!!
QA Automation Expert
