Testing of Web Application using Serenity with JUnit5

Last Updated On

May 2, 2024

In the previous tutorial, I explained about the Testing of Web Application using Serenity with JUnit4. In this tutorial, I’ll explain the Integration of Serenity BDD with JUnit5.

Table Of Contents

Prerequisite

Java 11 installed
Maven installed
Eclipse or IntelliJ installed

Dependency List:

Java 11
Maven – 3.8.1
Serenity – 3.2.0
Serenity JUnit5 – 3.2.0
JUnit5 – 5.8.0
Maven Surefire Plugin – 3.0.0-M5
Maven Failsafe Plugin – 3.0.0-M5
Maven Compiler Plugin – 3.8.1

Structure of Project

Implementation Steps

Step 1 – Update Properties section in Maven pom.xml

    <properties>
        <serenity.version>3.2.0</serenity.version>
        <junit5.version>5.8.2</junit5.version>
        <maven.surefire.plugin.version>3.0.0-M5</maven.surefire.plugin.version>
        <maven.failsafe.plugin.version>3.0.0-M5</maven.failsafe.plugin.version>
        <maven.compiler.plugin.version>3.8.1</maven.compiler.plugin.version>
        <maven.compiler.source>11</maven.compiler.source>
        <maven.compiler.target>11</maven.compiler.target>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <encoding>UTF-8</encoding>
        <tags></tags>
        <webdriver.base.url></webdriver.base.url>
    </properties>

Step 2 – Add Serenity and JUnit dependencies to POM.xml

<dependencies>
        <dependency>
            <groupId>net.serenity-bdd</groupId>
            <artifactId>serenity-core</artifactId>
            <version>${serenity.version}</version>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>net.serenity-bdd</groupId>
            <artifactId>serenity-junit5</artifactId>
            <version>${serenity.version}</version>
            <scope>test</scope>
        </dependency>
        <!-- JUNIT 5 DEPENDENCY-->
        <dependency>
            <groupId>org.junit.jupiter</groupId>
            <artifactId>junit-jupiter-api</artifactId>
            <version>${junit5.version}</version>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.junit.jupiter</groupId>
            <artifactId>junit-jupiter-engine</artifactId>
            <version>${junit5.version}</version>
            <scope>test</scope>
        </dependency>
    </dependencies>

Step 3 – Update Build Section of pom.xml

 <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-surefire-plugin</artifactId>
                <version>${maven.surefire.plugin.version}</version>
                <configuration>
                    <skip>true</skip>
                </configuration>
            </plugin>
            <plugin>
                <artifactId>maven-failsafe-plugin</artifactId>
                <version>${maven.failsafe.plugin.version}</version>
                <configuration>
                    <includes>
                        <include>**/*Test.java</include>
                        <include>**/Test*.java</include>
                        <include>**/*TestSuite.java</include>
                        <include>**/When*.java</include>
                    </includes>
                    <systemPropertyVariables>
                        <webdriver.base.url>${webdriver.base.url}</webdriver.base.url>
                        <junit.jupiter.extensions.autodetection.enabled>true</junit.jupiter.extensions.autodetection.enabled>
                    </systemPropertyVariables>
                </configuration>
                <executions>
                    <execution>
                        <goals>
                            <goal>integration-test</goal>
                            <goal>verify</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>${maven.compiler.plugin.version}</version>
                <configuration>
                    <source>${maven.compiler.source}</source>
                    <target>${maven.compiler.target}</target>
                </configuration>
            </plugin>
            <plugin>
                <groupId>net.serenity-bdd.maven.plugins</groupId>
                <artifactId>serenity-maven-plugin</artifactId>
                <version>${serenity.version}</version>
                <configuration>
                    <tags>${tags}</tags>
                    <reports>single-page-html</reports>
                </configuration>
                <executions>
                    <execution>
                        <id>serenity-reports</id>
                        <phase>post-integration-test</phase>
                        <goals>
                            <goal>aggregate</goal>
                        </goals>
                    </execution>
                </executions>
                <dependencies>
                    <dependency>
                        <groupId>net.serenity-bdd</groupId>
                        <artifactId>serenity-single-page-report</artifactId>
                        <version>${serenity.version}</version>
                    </dependency>
                </dependencies>
            </plugin>
        </plugins>
    </build>

Step 4 – Create the Test Class sunder src/test/java folder

ApplicationLoginJUnit5Tests.java

import net.serenitybdd.core.Serenity;
import net.serenitybdd.junit5.SerenityJUnit5Extension;
import net.thucydides.core.annotations.Managed;
import net.thucydides.core.annotations.Steps;
import net.thucydides.core.annotations.Title;

import org.junit.jupiter.api.Test;
import org.junit.jupiter.api.extension.ExtendWith;
import org.openqa.selenium.WebDriver;

import static org.assertj.core.api.Assertions.assertThat;

 @ExtendWith(SerenityJUnit5Extension.class)
 class ApplicationLoginJUnit5Tests {

        @Managed
        WebDriver driver;

        @Steps
        NavigateAction navigateAction;

        @Steps
        StepLoginPage loginPage;

        @Steps
        StepDashBoardPage dashboardPage;

        @Steps
        StepForgotPasswordPage forgetPasswordPage;

        @Test
        @Title("Login to application with valid credentials navigates to DashBoard page")

         void successfulLogin() {

            navigateAction.toTheHomePage();

            // When
            loginPage.inputUserName("Admin");
            loginPage.inputPassword("admin123");
            loginPage.clickLogin();

            // Then
            Serenity.reportThat("Passing valid credentials navigates to DashBoard page",
                    () -> assertThat(dashboardPage.getHeading()).isEqualToIgnoringCase("DashBoard"));
        }

        @Test
        @Title("Login to application with invalid credential generates error message")
         void unsuccessfulLogin() {

            navigateAction.toTheHomePage();

            // When
            loginPage.inputUserName("Admin");
            loginPage.inputPassword("admin1232");
            loginPage.clickLogin();

            // Then
            Serenity.reportThat("Passing invalid credentials generates error message",
                    () -> assertThat(loginPage.loginPageErrorMessage()).isEqualToIgnoringCase("Invalid credentials"));
        }

        @Test
        @Title("Verify Forgot your password link")
          void clickForgetPasswordLink() {

            // Given
            navigateAction.toTheHomePage();

            // When
            loginPage.clickForgetPasswordLink();

            // Then
            Serenity.reportThat("Open Forget Password Page after clicking forget password link",
                    () -> assertThat(forgetPasswordPage.getHeadingForgetPasswordPage())
                            .isEqualToIgnoringCase("Forgot Your Password?"));
        }
    }

To run a JUnit5 test with Serenity BDD, simply add the annotation @net.serenitybdd.junit5.SerenityTest (instead of @org.junit.runner.RunWith(net.serenitybdd.junit.runners.SerenityRunner.class) for JUnit4.

@ExtendWith(SerenityJUnit5Extension.class)

@Test is imported from package:-

import org.junit.jupiter.api.Test;

StepDashboardPage

public class StepDashBoardPage extends PageObject {

    @FindBy(xpath = "//*[@id='content']/div/div[1]/h1")
    WebElementFacade dashboardPageTitle;

    @Step("Heading of DashBoard Page")
    public String getHeading() {
        return dashboardPageTitle.getText();


    }
}

StepForgetPasswordPage

public class StepForgotPasswordPage extends PageObject {


    @FindBy(xpath = "//*[@id='content']/div[1]/div[2]/h1")
    WebElementFacade forgetLink;

    @Step("Verify Forget Password Page ")
    public String getHeadingForgetPasswordPage() {

        return forgetLink.getText();
    }
}

StepLoginPage

public class StepLoginPage extends PageObject {

    @FindBy(name = "txtUsername")
    WebElementFacade username;

    @FindBy(name = "txtPassword")
    WebElementFacade txtPassword;

    @FindBy(name = "Submit")
    WebElementFacade submitButton;

    @FindBy(id = "spanMessage")
    WebElementFacade errorMessage;

    @FindBy(xpath = "//*[@id='forgotPasswordLink']/a")
    WebElementFacade forgotPasswordLinkText;

    @Step("Enter Username")
    public void inputUserName(String userName) {
        $("[name='txtUsername']").sendKeys((userName));
    }

    @Step("Enter Password")
    public void inputPassword(String passWord) {
        txtPassword.sendKeys((passWord));
    }

    @Step("Click Submit Button")
    public void clickLogin() {
        submitButton.click();
    }

    @Step("Error Message on unsuccessful login")
    public String loginPageErrorMessage() {
        return errorMessage.getText();
    }

    @Step("Click Forget Password Link")
    public void clickForgetPasswordLink() {
        forgotPasswordLinkText.click();
    }
}

The WebElementFacade class contains a convenient fluent API for dealing with web elements, providing some commonly-used extra features that are not provided out-of-the-box by the WebDriver API. WebElementFacades are largely interchangeable with WebElements: you just declare a variable of type WebElementFacade instead of type WebElement

The @Steps annotation marks a Serenity step library.
Create the test following the Given/When/Then pattern and using step methods from the step library.
The @Title annotation lets you provide your own title for this test in the test reports. Serenity @Title is considered for the Serenity report. Consistently with Junit4, the @Title annotation does not influence the name in the Junit report.

The JUnit Serenity integration provides some special support for Serenity Page Objects. In particular, Serenity will automatically instantiate any PageObject fields in your JUnit test.

Junit5 @Disabled annotation can be used on test and step methods(same as @Ignore in JUnit4).

NavigateAction

import net.serenitybdd.annotations.Step;
import net.serenitybdd.core.steps.UIInteractionSteps;

public class NavigateAction extends UIInteractionSteps {

    @Step
    public void toTheHomePage() {
        openPageNamed("loginForm");
        System.out.println("Open webpage");
    }
}

Step 5 – Create serenity.conf file under src/test/resources

serenity.conf file is used to specify various features like the type of web driver used, various test environments, run tests in headless mode, and many more options.

webdriver {
  driver = chrome

}
headless.mode = true

#
# Chrome options can be defined using the chrome.switches property
#
chrome.switches = """--start-maximized;--test-type;--no-sandbox;--ignore-certificate-errors;
                   --disable-popup-blocking;--disable-default-apps;--disable-extensions-file-access-check;
                   --incognito;--disable-infobars,--disable-gpu"""

pages {
  loginForm = "https://opensource-demo.orangehrmlive.com/"
 }

Step 6 – Create serenity.properties file at the root of the project

serenity.project.name = Serenity and JUnit5 Demo

Step 7 – Run the tests through the command line

Execute the tests through the command line by using the below command

mvn clean verify

The output of the above test execution is

Step 8 – Serenity Report Generation

The path of Serenity’s reports is mentioned in the image. The reports are generated under /target/site/serenity/.

Index.html

The detailed steps of the tests can also be viewed in the Serenity Report. It shows the execution time of all the steps in a Test.

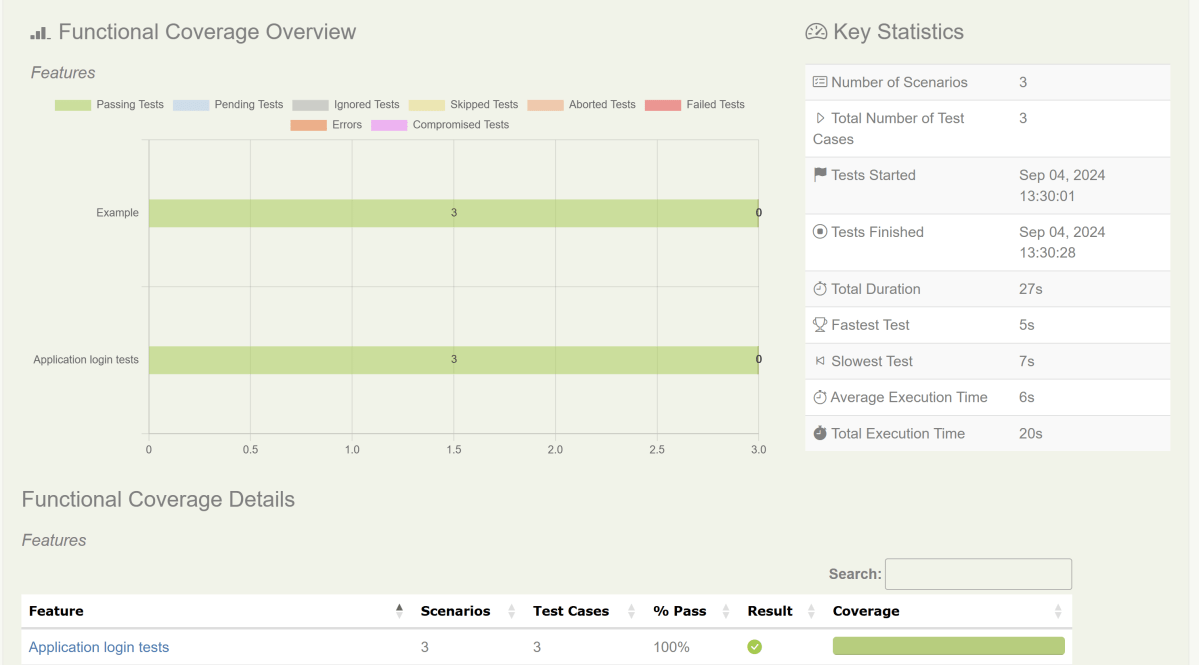

Serenity-Summary.html

We are done! Congratulations on making it through this tutorial and hope you found it useful! Happy Learning!!

Additional Tutorials:

*Serenity BDD with Cucumber for Web Application*
*Serenity BDD with Cucumber for SpringBoot Application*
*Serenity BDD with Cucumber and Rest Assured*
*Testing of SpringBoot REST Application using Rest Assured for GET Method*
*Serenity Report for Web Application with Cucumber6 and Junit*
*How to manage screenshots in Serenity Report*

3 thoughts on “Testing of Web Application using Serenity with JUnit5”

Ilias says:

April 23, 2024 at 1:53 PM

we miss the NavigateAction class

LikeLike

1. vibssingh says:

  May 2, 2024 at 5:48 PM

  Thank you. I have added NavigateAction class to the tutorial.

  LikeLike

AA1C says:

May 2, 2024 at 6:06 PM

Good post.I subscribed. Have a happy week🍀☘️💝

LikeLike

QA Automation Expert

Automation solutions to build Test Framework

Testing of Web Application using Serenity with JUnit5

Prerequisite

Dependency List:

Structure of Project

Implementation Steps

Step 1 – Update Properties section in Maven pom.xml

Step 2 – Add Serenity and JUnit dependencies to POM.xml

Step 3 – Update Build Section of pom.xml

Step 4 – Create the Test Class sunder src/test/java folder

Step 5 – Create serenity.conf file under src/test/resources

Step 6 – Create serenity.properties file at the root of the project

Step 7 – Run the tests through the command line

Step 8 – Serenity Report Generation

Additional Tutorials:

3 thoughts on “Testing of Web Application using Serenity with JUnit5”

Leave a comment Cancel reply

Prerequisite

Dependency List:

Structure of Project

Implementation Steps

Step 1 – Update Properties section in Maven pom.xml

Step 2 – Add Serenity and JUnit dependencies to POM.xml

Step 3 – Update Build Section of pom.xml

Step 4 – Create the Test Class sunder src/test/java folder

Step 5 – Create serenity.conf file under src/test/resources

Step 6 – Create serenity.properties file at the root of the project

Step 7 – Run the tests through the command line

Step 8 – Serenity Report Generation

Additional Tutorials:

Share this:

3 thoughts on “Testing of Web Application using Serenity with JUnit5”

Leave a comment Cancel reply
