How to generate JUnit4 Report

Last Updated On

HOME

For the successful execution of Agile testing requirements, a perfect test automation tool is required. And there are numerous factors to consider when creating a solid automation framework. One such component is reporting, which not only informs you of the success or failure of the project but also assists you in identifying potential bugs. JUnit is another useful framework that can add the ability to generate reports in Selenium. This tutorial explains the steps to generate the JUnit Report.

Table of Contents

  1. Prerequisite
  2. Dependency List
  3. Project Structure
  4. Implementation Steps
    1. Add the Maven Site Plugin and Maven Surefire Report plugin
    2. Create Pages and Test Code for the pages
    3. Run the tests from the Command Line
    4. JUnit Report generation

Prerequisite:

  1. Java 8 or higher installed
  2. Maven is installed
  3. Eclipse or IntelliJ are installed

Dependency List:

  1. Selenium – 4.3
  2. Java 11
  3. JUnit4 – 4.13.2
  4. Maven – 3.8.1
  5. Maven Site Plugin – 3.12.0
  6. Maven Surefire Report Plugin – 3.0.0.M6

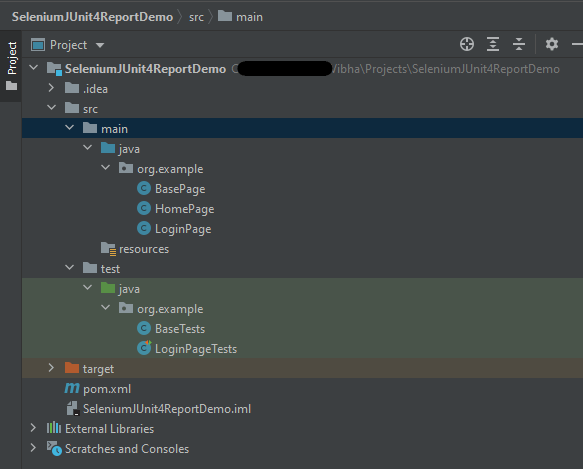

Project Structure

To create a Maven project in Eclipse, please refer to this tutorial – Maven – How to import Maven project in Eclipse

To create a Maven project in Eclipse, please refer to this tutorial – How to create Maven project in IntelliJ

Implementation Steps

Step 1 – Add the Maven Site Plugin and Maven Surefire Report plugin

Add the Maven Site Plugin and Maven Surefire Report plugin to the Maven project.

Maven Site Plugin

<plugin>
         <groupId>org.apache.maven.plugins</groupId>
          <artifactId>maven-site-plugin</artifactId>
          <version>${maven.site.plugin.version}</version>
</plugin>

Maven Surefire Report Plugin

<reporting>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-surefire-report-plugin</artifactId>
                <version>${maven.surefire.report.plugin.version}</version>
            </plugin>
        </plugins>
    </reporting>

The complete POM.xml looks like

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">

   <modelVersion>4.0.0</modelVersion>
    <groupId>org.example</groupId>
    <artifactId>SeleniumJUnit4ReportDemo</artifactId>
    <version>1.0-SNAPSHOT</version>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <selenium.version>4.3.0</selenium.version>
        <junit.version>4.13.2</junit.version>
        <webdrivermanager.version>5.2.1</webdrivermanager.version>
        <maven.site.plugin.version>3.12.0</maven.site.plugin.version>
        <maven.compiler.plugin.version>3.10.1</maven.compiler.plugin.version>
        <maven.surefire.plugin.version>3.0.0-M7</maven.surefire.plugin.version>
        <maven.surefire.report.plugin.version>3.0.0-M6</maven.surefire.report.plugin.version>
        <maven.compiler.source>11</maven.compiler.source>
        <maven.compiler.target>11</maven.compiler.target>
    </properties>

 <dependencies>

        <!-- Selenium -->
        <dependency>
            <groupId>org.seleniumhq.selenium</groupId>
            <artifactId>selenium-java</artifactId>
            <version>${selenium.version}</version>
        </dependency>

        <!-- JUnit4 -->
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>${junit.version}</version>
            <scope>test</scope>
        </dependency>

        <!-- Web Driver Manager -->
        <dependency>
            <groupId>io.github.bonigarcia</groupId>
            <artifactId>webdrivermanager</artifactId>
            <version>${webdrivermanager.version}</version>
        </dependency>

    </dependencies>

    <build>
        <plugins>

            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-site-plugin</artifactId>
                <version>${maven.site.plugin.version}</version>
            </plugin>

            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-surefire-plugin</artifactId>
                <version>${maven.surefire.plugin.version}</version>
                <configuration>
                    <testFailureIgnore>true</testFailureIgnore>
                </configuration>
            </plugin>

            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>${maven.compiler.plugin.version}</version>
                <configuration>
                    <source>${maven.compiler.source}</source>
                    <target>${maven.compiler.target}</target>
                </configuration>
            </plugin>
        </plugins>
    </build>

    <reporting>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-surefire-report-plugin</artifactId>
                <version>${maven.surefire.report.plugin.version}</version>
            </plugin>
        </plugins>
    </reporting>
</project>

Step 2 – Create Pages and Test Code for the pages

Below is the sample project which uses Selenium and JUnit which is used to generate a JUnit Report.

This is the BaseClass that contains the PageFactory.initElements. The initElements is a static method of PageFactory class that is used to initialize all the web elements located by @FindBy annotation.

import org.openqa.selenium.WebDriver;
import org.openqa.selenium.support.PageFactory;

public class BasePage {

	  public WebDriver driver;

	  public BasePage(WebDriver driver) {
		  this.driver = driver;
		  PageFactory.initElements(driver,this);
	}

}

Below is the code for LoginPage and HomePage.

LoginPage

import org.openqa.selenium.WebDriver;
import org.openqa.selenium.WebElement;
import org.openqa.selenium.support.FindBy;

public class LoginPage extends BasePage{

	 public LoginPage(WebDriver driver) {
		 super(driver);

    }

	@FindBy(name = "username")
    public WebElement userName;

    @FindBy(name = "password")
    public WebElement password;

    @FindBy(xpath = "//*[@id='app']/div[1]/div/div[1]/div/div[2]/div[2]/form/div[1]/div/span")
    public WebElement missingUsernameErrorMessage;

    @FindBy(xpath = "//*[@id='app']/div[1]/div/div[1]/div/div[2]/div[2]/form/div[1]/div/span")
    public WebElement missingPasswordErrorMessage;

    @FindBy(xpath = "//*[@id='app']/div[1]/div/div[1]/div/div[2]/div[2]/form/div[3]/button")
    public WebElement login;

    @FindBy(xpath = "//*[@id='app']/div[1]/div/div[1]/div/div[2]/div[2]/div/div[1]/div[1]/p")
    public  WebElement errorMessage;


    public void login(String strUserName, String strPassword) {

    	userName.sendKeys(strUserName);
    	password.sendKeys(strPassword);
    	login.click();

    }

    public String getMissingUsernameText() {
        return missingUsernameErrorMessage.getText();
    }

    public String getMissingPasswordText() {
        return missingPasswordErrorMessage.getText();
    }

    public String getErrorMessage() {
        return errorMessage.getText();
    }

}

HomePage

import org.openqa.selenium.WebDriver;
import org.openqa.selenium.WebElement;
import org.openqa.selenium.support.FindBy;

public class HomePage extends BasePage {

	public HomePage(WebDriver driver) {
		super(driver);

	}

	  @FindBy(xpath = "//*[@id='app']/div[1]/div[1]/header/div[1]/div[1]/span/h6")
	  public  WebElement homePageUserName;

	  public String getHomePageText() {
	       return homePageUserName.getText();
   }

}

Here, we have BaseTests Class which contains the common methods needed by other test pages.

import java.time.Duration;
import org.junit.After;
import org.junit.Before;
import org.openqa.selenium.WebDriver;
import org.openqa.selenium.chrome.ChromeDriver;
import io.github.bonigarcia.wdm.WebDriverManager;

public class BaseTests {

	public static WebDriver driver;
	public final static int TIMEOUT = 10;

	@Before
    public void setup() {
    	WebDriverManager.chromedriver().setup();
	    driver = new ChromeDriver();
	    driver.manage().window().maximize();
	    driver.get("https://opensource-demo.orangehrmlive.com/");
	    driver.manage().timeouts().implicitlyWait(Duration.ofSeconds(TIMEOUT));

    }

    @After
    public void tearDown() {
        driver.quit();
    }

}

LoginPageTests

import org.junit.Assert;
import org.junit.Test;

public class LoginPageTests extends BaseTests{

    @Test
    public void invalidCredentials() {

        LoginPage objLoginPage = new LoginPage(driver);
        objLoginPage.login("admin$$", "admin123");

        // Verify Error Message
        Assert.assertEquals("Invalid credentials",objLoginPage.getErrorMessage());

    }

    @Test
    public void validLogin() {

        LoginPage objLoginPage = new LoginPage(driver);
        objLoginPage.login("Admin", "admin123");

        HomePage objHomePage = new HomePage(driver);

        // Verify Home Page
        Assert.assertEquals("Dashboard",objHomePage.getHomePageText());

    }

    @Test
    public void missingUsername() {

        LoginPage objLoginPage = new LoginPage(driver);
        objLoginPage.login("", "admin123");

        // Verify Error Message
        Assert.assertEquals("Invalid credentials",objLoginPage.getMissingUsernameText());

    }

}

Step 3 – Run the tests from the Command Line

Use the below command to run the tests from the command line

mvn clean test site

The output of the test execution is

Step 4 – JUnit Report generation

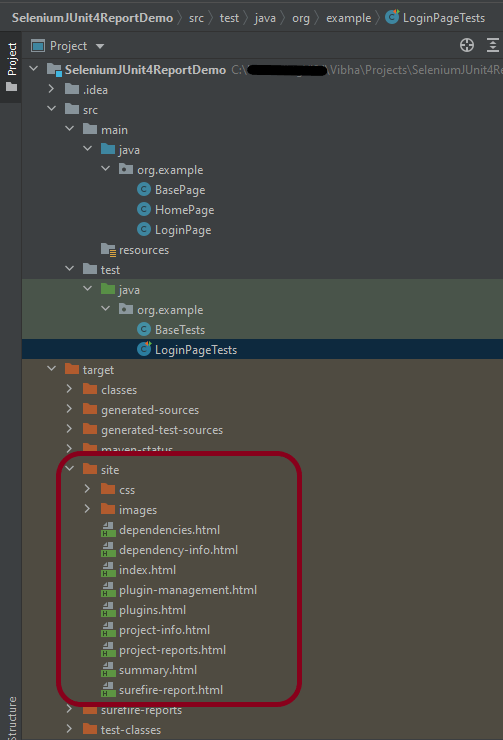

Maven Site Plugin creates a folder – site under the target directory, and the Maven Surefire Report plugin generates the JUnit Reports in the site folder.

Right-click on the surefire-report.html and open it in the browser.

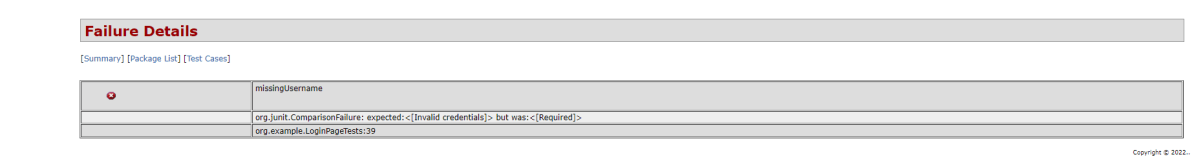

To know about the test failure, go to the Failure Details Section.

Congratulations on making it through this tutorial and hope you found it useful! Happy Learning!! Cheers!!

vibssingh

Assumptions in JUnit5

HOME

 Assumptions is a collection of utility methods that support conditional test execution based on assumptions.

In direct contrast to failed assertions, failed assumptions do not result in a test failure; rather, a failed assumption results in a test being aborted.

Assumptions are typically used whenever it does not make sense to continue execution of a given test method — for example, if the test depends on something that does not exist in the current runtime environment.

Junit 5 comes with a subset of the assumption methods that JUnit 4 provides with Java 8 lambda expressions and method references. All JUnit Jupiter assumptions are static methods in the org.junit.jupiter.api.Assumptions class.

  1. Assumptions.assumeTrue() – If the condition is true, then run the test, else aborting the test.
  2. Assumptions.false() – If the condition is false, then run the test, else aborting the test.
  3. Assumptions.assumingThat() – is much more flexible, If condition is true then executes, else do not abort test continue rest of code in test.
1. assumeTrue

The assumeTrue() method validates the given assumption to be true and if the assumption is true – the test proceed, otherwise, test execution is aborted.

    int num1 = 4;
    int num2=6;
    int num3 = 24;
    int num4=10;

    @Test
    void assumeTrueTest() {
        System.setProperty("ENV", "TEST");
        assumeTrue("TEST".equals(System.getProperty("ENV")));

        // Since the condition is true rest of it will get executed
        assertEquals((num1*num2),num3,"The product of "+num1+"and "+num2+"is equal to "+num3);

    }

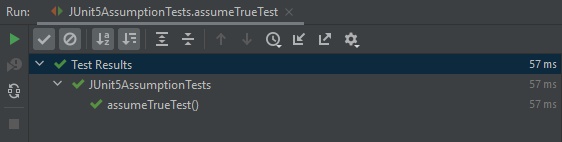

The output of the above program is

In the below example, assumeTrue() is false. So, the execution is skipped.

    int num1 = 4;
    int num2=6;
    int num3 = 24;
    int num4=10;

    @Test
    void assumeTrueTest1() {
        System.setProperty("ENV", "TEST");
        assumeTrue("QA".equals(System.getProperty("ENV")));

        // Since the condition is true rest of it will not get executed
        assertEquals((num1*num2),num3,"The product of "+num1+"and "+num2+"is equal to "+num3);

    }

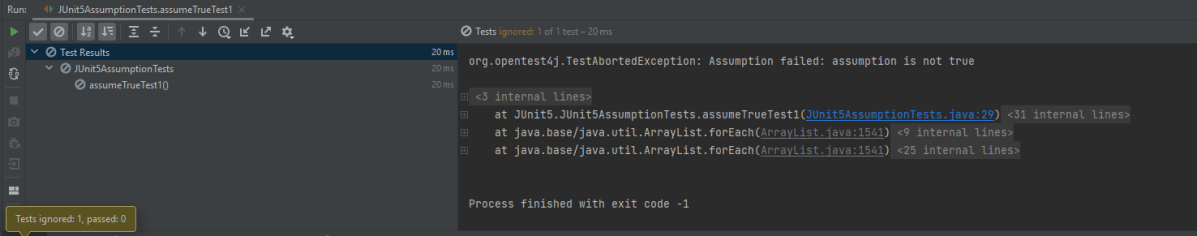

The output of the above program is

2. assumeFalse()

The assumeFalse() method validates the given assumption to false and if the assumption is false – test proceed, otherwise, test execution is aborted. In the below example, the test is false and we are using assumeFalse(), so the tests will be executed.

    int num1 = 4;
    int num2=6;
    int num3 = 24;
    int num4=10;

    @Test
    void assumeFalseTest1() {
        System.setProperty("ENV", "TEST");
        assumeFalse("DEV".equals(System.getProperty("ENV")));

        // Since the condition is true rest of it will get executed
        assertEquals((num1*num2),num3,"The product of "+num1+"and "+num2+"is equal to "+num3);

    }

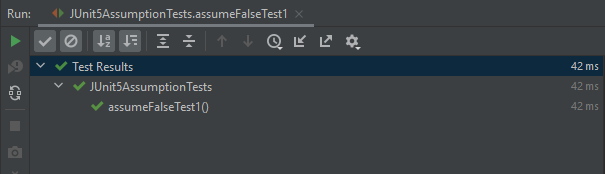

The output of the above program is

In the below example, the test is false and we are using assumeFalse(), so the tests will be executed.

 @Test
    void assumeFalseTest() {
        System.setProperty("ENV", "TEST");
        assumeFalse("TEST".equals(System.getProperty("ENV")));

        // Since the condition is false rest of it will not get executed
        assertEquals((num1*num2),num3,"The product of "+num1+"and "+num2+"is equal to "+num3);

    }

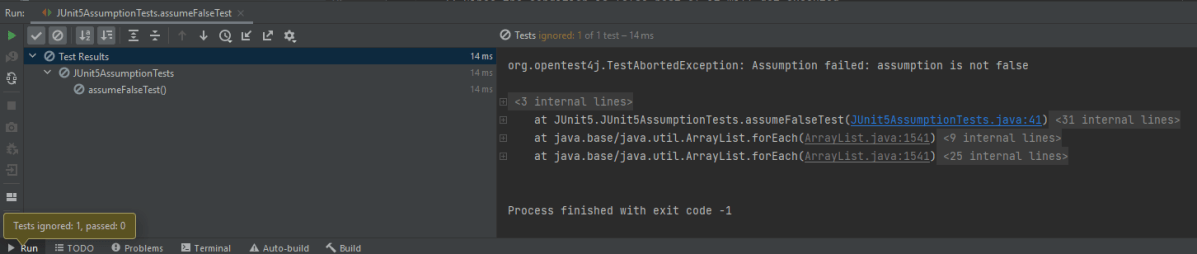

The output of the above program is

3. assertThat()

This method executes the supplied Executable, but only if the supplied assumption is valid.

Unlike the other assumption methods, this method will not abort the test.

If the assumption is invalid, this method does nothing.
If the assumption is valid and the executable throws an exception, it will be treated like a regular test failure. The thrown exception will be rethrown as is but masked as an unchecked exception.

    int num1 = 4;
    int num2=6;
    int num3 = 24;
    int num4=10;
    int num5=8;
    int num6=2;

   @Test
    void assumingThatTest() {
        System.setProperty("ENV", "UAT");
        assumingThat(
                "UAT".equals(System.getProperty("ENV")),
                () -> {
                    // Since the condition is true, this assertion will get executed
                    System.out.println("Assuming that executable executed");
                    assertEquals((num1+num2),num4,"The product of "+ num1 +" and "+ num2 +" is not equal to "+num4);
                });
        // Since the condition is false rest of it will get executed
        System.out.println("Loop outside");
        assertEquals((num5-num2),num6,"The difference of "+ num5 +" and "+num2+" is not equal to " + num6);
    }

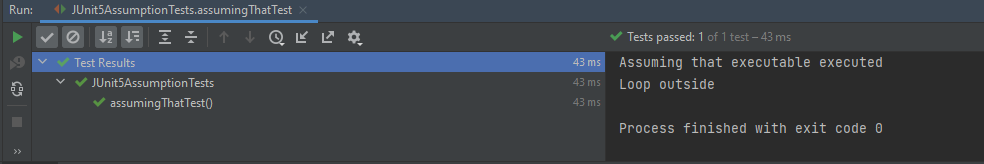

The output of the above program is

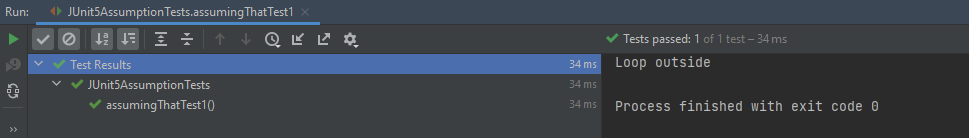

In the below example, the condition is false , so we skip the execution of that condition. But, we execute the rest of the code.

    int num1 = 4;
    int num2=6;
    int num3 = 24;
    int num4=10;

    @Test
    void assumingThatTest1() {
        System.setProperty("ENV", "UAT");
        assumingThat(
                "DEV".equals(System.getProperty("ENV")),
                () -> {
                    // Since the condition is false, this assertion will not get executed
                    System.out.println("Assuming that executable executed");
                    assertEquals((num1+num2),num4,"The sum of "+num1+"and "+num2+"is not equal to "+num4);
                });

        System.out.println("Loop outside");
        assertEquals((num1*num2),num3,"The product of "+num1+"and "+num2+"is not equal to "+num3);
    }

The output of the above program is

Difference between Assumption and Assertion

The main difference between the assertions and assumptions is –

The assumption is use to decide whether we want to execute a section or the rest of the test method or not and if the condition is false then the test is skipped.

Whereas if a condition in an assertion fails then it fails the test and something needs to be fixed.

vibssingh

How to parameterize Tests in JUnit5

HOME

JUnit5  enables us to execute a single test method multiple times with a different sets of data. This is called Parameterization. Parameterized Tests are declared just like regular @Test methods but use the @ParameterizedTest annotation.

This article shows you how to run a test multiple times with different arguments, so-called ‘Parameterized Tests’, let’s see the following ways to provide arguments to the test:

  • @ValueSource
  • @EnumSource
  • @MethodSource
  • @CsvSource
  • @CsvFileSource
  • @ArgumentsSource

We need to add junit-jupiter-params to support parameterized tests. In the case of Maven, add the dependency to POM.xml

<dependency>
    <groupId>org.junit.jupiter</groupId>
    <artifactId>junit-jupiter-params</artifactId>
    <version>5.8.2</version>
    <scope>test</scope>
</dependency>

In case of Gradle, add the dependency as

testCompile("org.junit.jupiter:junit-jupiter-params:5.8.2")

1. @ValueSource

Let us start with a simple example. The following example demonstrates a parameterized test that uses the @ValueSource annotation to specify an integer array as the source of arguments. The following @ParameterizedTest method will be invoked three times, with the values 5,6, and 0 respectively.

@ParameterizedTest
@ValueSource(ints = {5, 6, 0})
void test_int_arrays(int b) {

    int a= 5;
    int sum = a + b;
    assertTrue(sum>8);
 }

When executing the above-parameterized test method, each invocation will be reported separately.

The output of the above program is:

One of the limitations of value sources is that they only support these types:

  • short (with the shorts attribute)
  • byte (bytes attribute)
  • int (ints attribute)
  • long (longs attribute)
  • float (floats attribute)
  • double (doubles attribute)
  • char (chars attribute)
  • java.lang.String (strings attribute)
  • java.lang.Class (classes attribute)

Also, we can only pass one argument to the test method each time.

In the below example, an array of strings is passed as the argument to the Parameterized Test.

@ParameterizedTest(name = "#{index} - Run test with args={0}")
@ValueSource(strings = {"java", "python", "javascript","php"})
void test_string_arrays(String arg) {
        assertTrue(arg.length() > 1);
}

The output of the above program is:

@NullSource

It provides a single null an argument to the annotated @ParameterizedTest method.

    @ParameterizedTest()
    @NullSource
    void nullString(String text) {
        assertTrue(text == null);
    }

The output of the above program is:

@EmptySource

It provides a single empty argument to the annotated @ParameterizedTest method of the following types:

  • java.lang.String
  • java.util.List
  • java.util.Set
  • java.util.Map
  • primitive arrays (e.g. int[])
  • object arrays (e.g. String[])
 @ParameterizedTest
    @EmptySource
    void testMethodEmptySource(String argument) {
        assertTrue(StringUtils.isEmpty(argument));
        assertTrue(StringUtils.isBlank(argument));
    }

The output of the above program is:

@NullAndEmptySource

We can pass empty or null values into the test via @EmptySource, @NullSource, or @NullAndEmptySource (since JUnit 5.4).

Let’s see the following example to test an isEmpty() method.

import org.junit.jupiter.params.ParameterizedTest;
import org.junit.jupiter.params.provider.EmptySource;
import org.junit.jupiter.params.provider.NullSource;
import org.junit.jupiter.params.provider.ValueSource;
import static org.junit.jupiter.api.Assertions.*;

public class ParameterizedTestDemo {

    @ParameterizedTest(name = "#{index} - isEmpty()? {0}")
    @NullSource
    @EmptySource
    @ValueSource(strings = { " ", "   ", "\t", "\n","a"})
    void nullEmptyAndBlankStrings(String text) {
        assertTrue(text == null || text.trim().isEmpty());
    }
}

The parameterized test method result in seven invocations: 1 for null, 1 for the empty string, 4 for the explicit blank strings supplied via @ValueSource, and 1 non-blank string “a” supplied via @ValueSource.

The output of the above program is:

2. @EnumSource

@EnumSource provides a convenient way to use Enum constants.

public class EnumParameterizedTest {

    enum Error {
         Request_Invalid,
         Request_Timeout,
         RequestHeader_Invalid,
         Concurrency_Failed,
         ExternalCall_Failed,
         Schema_Invalid,
         Authentication_Failed;
    }

    @ParameterizedTest
    @EnumSource(Error.class)
    void test_enum(Error error) {
       assertNotNull(error);
    }
}

The output of the above program is:

The annotation provides an optional names attribute that lets you specify which constants shall be used, like in the following example. If omitted, all constants will be used.

    @ParameterizedTest(name = "#{index} - Is Error contains {0}?")
    @EnumSource(value = Error.class, names = {"Request_Invalid", "ExternalCall_Failed", "Concurrency_Failed", "Authentication_Failed"})
    void test_enum_include(Error error) {
       assertTrue(EnumSet.allOf(Error.class).contains(error));
    }

The output of the above program is:

The @EnumSource annotation also provides an optional mode attribute that enables fine-grained control over which constants are passed to the test method. For example, you can exclude names from the enum constant pool or specify regular expressions as in the following examples.

 @ParameterizedTest
 @EnumSource(value = Error.class, mode = EnumSource.Mode.EXCLUDE, names = {"Request_Invalid", "Request_Timeout", "RequestHeader_Invalid"})
    void test_enum_exclude(Error error) {
        EnumSet<Error> excludeRequestRelatedError = EnumSet.range(Error.Concurrency_Failed, Error.Authentication_Failed);
        assertTrue(excludeRequestRelatedError.contains(error));
  }

The output of the above program is:

EnumSource.Mode.EXCLUDE – It selects all declared enum constants except those supplied via the names attribute.

EnumSource.Mode.MATCH_ALL – It selects only those enum constants whose names match any pattern supplied via the names attribute.

  @ParameterizedTest
    @EnumSource(mode = EnumSource.Mode.MATCH_ALL, names = "^.*Invalid")
    void test_match(Error error) {
        assertTrue(error.name().contains("Invalid"));
    }

The output of the above program is

3. @MethodSource

@MethodSource allows you to refer to one or more factory methods of the test class or external classes.

Factory methods within the test class must be static unless the test class is annotated with @TestInstance(Lifecycle.PER_CLASS); whereas, factory methods in external classes must always be static. In addition, such factory methods must not accept any arguments.

If you only need a single parameter, you can return a Stream of instances of the parameter type as demonstrated in the following example.

   @ParameterizedTest(name = "#{index} - Test with String : {0}")
    @MethodSource("stringProvider")
    void test_method_string(String arg) {
        assertNotNull(arg);
    }

    // this need static
    static Stream<String> stringProvider() {
        return Stream.of("java", "junit5", null);
    }

The output of the above program is

If you do not explicitly provide a factory method name via @MethodSource, JUnit Jupiter will search for a factory method that has the same name as the current @ParameterizedTest method by convention. This is demonstrated in the following example.

    @ParameterizedTest(name = "#{index} - Test with String : {0}")
    @MethodSource
    void test_no_factory_methodname(String arg) {
        assertNotNull(arg);
    }

    static Stream<String> test_no_factory_methodname() {
        return Stream.of("java", "junit5", null);
    }

The output of the above program is

Streams for primitive types (DoubleStream, IntStream, and LongStream) are also supported as demonstrated by the following example.

 @ParameterizedTest(name = "#{index} - Test with Int : {0}")
    @MethodSource("rangeProvider")
    void test_method_int(int arg) {
        assertTrue(arg < 6);
    }

    static IntStream rangeProvider() {
        return IntStream.range(0, 6);
    }

The output of the above program is

If a parameterized test method declares multiple parameters, you need to return a collection, stream, or array of Arguments instances or object arrays as shown below.

    @ParameterizedTest
    @MethodSource("stringIntAndListProvider")
    void testWithMultiArgMethodSource(String str, int num, List<String> list) {
        assertEquals(5, str.length());
        assertTrue(num >=1 && num <=2);
        assertEquals(2, list.size());
    }

    static Stream<Arguments> stringIntAndListProvider() {
        return Stream.of(
                arguments("apple", 1, Arrays.asList("a", "b")),
                arguments("lemon", 2, Arrays.asList("x", "y"))
        );
    }

The output of the above program is

4. @CsvSource

@CsvSource allows you to express argument lists as comma-separated values (i.e., CSV String literals). Each string provided via the value attribute in @CsvSource represents a CSV record and results in one invocation of the parameterized test.

import org.junit.jupiter.params.ParameterizedTest;
import org.junit.jupiter.params.provider.CsvSource;
import static org.junit.jupiter.api.Assertions.assertEquals;

public class CSVParameterizedTest {

    @ParameterizedTest
    @CsvSource({
            "java,      4",
            "javascript,   7",
            "python,    6",
            "HTML,    4",
    })


    void test(String str, int length) {
        assertEquals(length, str.length());
    }
}

The output of the above program is

5. @CsvFileSource

@CsvFileSource lets us use comma-separated value (CSV) files from the classpath or the local file system. Each record from a CSV file results in one invocation of the parameterized test. The first record may optionally be used to supply CSV headers.

csvdemo.csv

    @ParameterizedTest
    @CsvFileSource(resources = "/csvdemo.csv")

    void testLength(String str, int length) {
        Assertions.assertEquals(length, str.length());
    }

The output of the above program is

csv file with the heading

JUnit can ignore the headers via the numLinesToSkip attribute.

    @ParameterizedTest
    @CsvFileSource(files = "src/test/resources/csvdemo.csv",numLinesToSkip = 1)

    void testStringLength(String str, int length) {
        Assertions.assertEquals(length, str.length());
    }

The output of the above program is

If you would like the headers to be used in the display names, you can set the useHeadersInDisplayName attribute to true. The examples below demonstrate the use of useHeadersInDisplayName.

 @ParameterizedTest(name = "[{index}] {arguments}")
    @CsvFileSource(files = "src/test/resources/csvdemo.csv",useHeadersInDisplayName = true)

    void testStringLength1(String str, int length) {
        assertEquals(length, str.length());
    }

The output of the above program is

6. @ArgumentsSource

@ArgumentsSource can be used to specify a custom, reusable ArgumentsProvider. Note that an implementation of ArgumentsProvider must be declared as either a top-level class or as a static nested class.

import org.junit.jupiter.api.extension.ExtensionContext;
import org.junit.jupiter.params.provider.Arguments;
import org.junit.jupiter.params.provider.ArgumentsProvider;
import java.util.stream.Stream;

public class CustomArgumentsProvider implements ArgumentsProvider {

    @Override
    public Stream<? extends Arguments>
    provideArguments(ExtensionContext extensionContext) throws Exception {
        return Stream.of("java", "junit5", "junit4", null).map(Arguments::of);
    }
}

import org.junit.jupiter.params.ParameterizedTest;
import org.junit.jupiter.params.provider.ArgumentsSource;
import static org.junit.jupiter.api.Assertions.assertNotNull;

public class ArgumentsSourceTest {

    @ParameterizedTest
    @ArgumentsSource(CustomArgumentsProvider.class)
    void test_argument_custom(String arg) {
        assertNotNull(arg);
    }
}

The output of the above program is

Congratulation. We have understood parameterization in JUnit5 tests. Happy Learning!!

vibssingh

How to run JUnit5 tests in order

HOME

The general practices say that automated tests should be able to run independently and with no specific order, as well as the result of the test should not depend on the results of previous tests. But there are situations where a specific order of test execution can be justified, especially in integration or end-to-end tests. The test methods don’t follow a specific order by default to execute the tests. The test cases need not necessarily execute in the order in which they have been written.

There are different ways or modes to set the order of execution for the test cases.  This article shows how to control the JUnit 5 test execution order via the following MethodOrderer classes:

  • DisplayName – sorts test methods alphanumerically based on their display names
  • MethodName – sorts test methods alphanumerically based on their names and formal parameter lists
  • Alphanumeric – sorts test methods alphanumerically based on their names and formal parameter lists. This is deprecated from JUnit Version 5.7 onwards
  • OrderAnnotation – sorts test methods numerically based on values specified via the @Order annotation
  • Random – orders test methods pseudo-randomly and support the configuration of a custom seed
  • Custom Order – A custom ordering sequence can be implemented by the interface MethodOrderer and providing it as the argument to @TestMethodOrder.

Let us create JUnit5 Tests and execute them.

public class OrderRandomDemo {

    @Test
    void test_Add() {

        System.out.println("test_Add()");
        assertEquals(10, 3 + 7);
    }

    @Test
    void test_Subtract() {

        System.out.println("test_Subtract()");
        assertEquals(10, 14 - 4);
    }

    @Test
    void test_Multiply() {

        System.out.println("test_Multiply()");
        assertEquals(10, 5 * 2);
    }

    @Test
    void test_Divide() {

        System.out.println("test_Divide()");
        assertEquals(10, 30 / 3);
    }

    @Test
    void test_IsEven() {

        System.out.println("test_IsEven()");
        assertEquals(0, 10%2);
    }

}

The output of the above program

1. DisplayName

It sorts test methods alphanumerically based on their display names. Test Method can be anything annotated with @Test, @RepeatedTest, @ParameterizedTest, @TestFactory, or @TestTemplate.

@TestMethodOrder(MethodOrderer.DisplayName.class)

@TestMethodOrder is a type-level annotation that is used to configure a MethodOrderer for the test methods of the annotated test class or test interface.

MethodOrderer defines the API for ordering the test methods in a given test class.

Test Method – It is any method annotated with @Test, @RepeatedTest, @ParameterizedTest, @TestFactory, or @TestTemplate.

DisplayName.class – MethodOrderer that sorts methods alphanumerically based on their names using String.compareTo(String).
If two methods have the same name, String representations of their formal parameter lists will be used as a fallback for comparing the methods.

An example of sorting the tests based on their display names.

import org.junit.jupiter.api.DisplayName;
import org.junit.jupiter.api.MethodOrderer;
import org.junit.jupiter.api.Test;
import org.junit.jupiter.api.TestMethodOrder;
import static org.junit.jupiter.api.Assertions.assertEquals;

@TestMethodOrder(MethodOrderer.DisplayName.class)
public class DisplayNameOrderedTests {

    @DisplayName("C")
    @Test
    void test_Add() {

        System.out.println("test_Add()");
        assertEquals(10, 3 + 7);
    }


    @DisplayName("E")
    @Test
    void test_Multiply() {

        System.out.println("test_Multiply()");
        assertEquals(10, 5 * 2);
    }

    @DisplayName("A")
    @Test
    void test_Divide() {

        System.out.println("test_Divide()");
        assertEquals(10, 30 / 3);
    }


    @DisplayName("D")
    @Test
    void test_Subtract() {

        System.out.println("test_Subtract()");
        assertEquals(10, 18 - 8);
    }

    @DisplayName("B")
    @Test
    void test_IsEven() {

        System.out.println("test_IsEven()");
        assertEquals(0, 18%2);
    }
}

We can see that the test methods are sorted alphanumerically based on their display name starting from A to E. The output of the above program

2. MethodName

This annotation sorts methods alphanumerically based on their names using String.compareTo(String).
If two methods have the same name, String representations of their formal parameter lists will be used as a fallback for comparing the methods.

@TestMethodOrder(MethodOrderer.MethodName.class)

Let us see an example of MethodName.

import org.junit.jupiter.api.MethodOrderer;
import org.junit.jupiter.api.Test;
import org.junit.jupiter.api.TestMethodOrder;
import static org.junit.jupiter.api.Assertions.assertEquals;

@TestMethodOrder(MethodOrderer.MethodName.class)
class MethodNameOrderedTests {

    @Test
    void testE() {

        System.out.println("testE");
        assertEquals(10, 3 + 7);
    }

    @Test
    void testA() {

        System.out.println("testA");
        assertEquals(10, 14 - 4);
    }

    @Test
    void testC() {
        System.out.println("testC");
        assertEquals(10, 5 * 2);
    }

    @Test
    void testB() {
        System.out.println("testB");
        assertEquals(10, 30 / 3);
    }

    @Test
    void testD() {
        System.out.println("testD");
        assertEquals(10, 10 + 0);
    }

}

The output of the above program

3. OrderAnnotation

This sorts test method numerically based on values specified via the @Order annotation.
Any methods that are assigned the same order value will be sorted arbitrarily adjacent to each other.
When any method is not annotated with @Order, it will be assigned the default order value, which will effectively cause them to appear at the end of the sorted list.

@TestMethodOrder(MethodOrderer.OrderAnnotation.class)

Let us see an example of OrderAnnotation.

import org.junit.jupiter.api.MethodOrderer;
import org.junit.jupiter.api.Order;
import org.junit.jupiter.api.Test;
import org.junit.jupiter.api.TestMethodOrder;
import static org.junit.jupiter.api.Assertions.assertEquals;

@TestMethodOrder(MethodOrderer.OrderAnnotation.class)
public class OrderAnnotationDemo {

    @Test
    @Order(3)
    void test_Add() {

        System.out.println("test_Add()");
        assertEquals(10, 3 + 7);
    }

    @Test
    @Order(4)
    void test_IsOdd() {
        System.out.println("test_IsOdd()");
        assertEquals(1, 11%2);
    }

    @Test
    void test_Subtract() {
        System.out.println("test_Subtract()");
        assertEquals(10, 14 - 4);
    }

    @Test
    @Order(1)
    void test_Multiply() {
        System.out.println("test_Multiply()");
        assertEquals(10, 5 * 2);
    }

    @Test
    @Order(4)
    void test_Divide() {
        System.out.println("test_Divide()");
        assertEquals(10, 30 / 3);
    }

    @Test
    @Order(2)
    void test_IsEven() {
        System.out.println("test_IsEven()");
        assertEquals(0, 10%2);
    }
}

Here, test_Subtract() is not assigned any order value, so it is displayed as the last one in the last.

4. Random

These sorts of test methods are pseudo-randomnly.

@TestMethodOrder(MethodOrderer.Random.class)

Let us create a program to show the random order of tests in JUnit5.

import org.junit.jupiter.api.MethodOrderer;
import org.junit.jupiter.api.Test;
import org.junit.jupiter.api.TestMethodOrder;
import static org.junit.jupiter.api.Assertions.assertEquals;

@TestMethodOrder(MethodOrderer.Random.class)
public class OrderRandomDemo {

    @Test
    void test_Add() {

        System.out.println("test_Add()");
        assertEquals(10, 3 + 7);
    }

    @Test
    void test_Subtract() {

        System.out.println("test_Subtract()");
        assertEquals(10, 14 - 4);
    }

    @Test
    void test_Multiply() {

        System.out.println("test_Multiply()");
        assertEquals(10, 5 * 2);
    }

    @Test
    void test_Divide() {

        System.out.println("test_Divide()");
        assertEquals(10, 30 / 3);
    }

    @Test
    void test_IsEven() {

        System.out.println("test_IsEven()");
        assertEquals(0, 10%2);
    }
}

The output of the above program

5. Custom Order

We can define our own custom ordering sequence by implementing the interface MethodOrderer and providing it as the argument to @TestMethodOrder.

Here, the tests are arranged in descending method order.

import org.junit.jupiter.api.MethodDescriptor;
import org.junit.jupiter.api.MethodOrderer;
import org.junit.jupiter.api.MethodOrdererContext;

public class DescendingMethodOrder implements MethodOrderer {

    @Override
    public void orderMethods(MethodOrdererContext context) {
        context.getMethodDescriptors().sort((MethodDescriptor m1, MethodDescriptor m2) ->
                m2.getMethod().getName().compareTo(m1.getMethod().getName()));
    }

}

Now, test the above custom order.

import org.junit.jupiter.api.Test;
import org.junit.jupiter.api.TestMethodOrder;
import static org.junit.jupiter.api.Assertions.assertEquals;

@TestMethodOrder(DescendingMethodOrder.class)
public class CustomOrderTests {

    @Test
    void test_Add() {
        System.out.println("test_Add()");
        assertEquals(10 , 4 + 6);
    }

    @Test
    void test_Subtract() {
        System.out.println("test_Subtract()");
        assertEquals(10 , 17 - 7);
    }

    @Test
    void test_Multiply() {
        System.out.println("test_Multiply()");
        assertEquals(10 , 5 * 2);
    }

    @Test
    void test_Divide() {
        System.out.println("test_Divide()");
        assertEquals(10 , 20/2);
    }

    @Test
    void test_IsEven() {
        System.out.println("test_IsEven()");
        assertEquals(0 , 20%2);
    }
}

Notice the test output. The tests are executed in descending order. The result of the above program is

Test Classes Ordering

  1. ClassName: sorts test classes alphanumerically based on their fully qualified class names.
  2. DisplayName: sorts test classes alphanumerically based on their display names (see display name generation precedence rules).
  3. OrderAnnotation: sorts test classes numerically based on values specified via the @Order annotation.
  4. Random: orders test classes pseudo-randomly and support the configuration of a custom seed.

The configured ClassOrderer will be applied to all top-level test classes (including static nested test classes) and @Nested test classes.

1. ClassName

The Test Classes are sorted alphanumerically based on their fully qualified class names.

package JUnit5;

import org.junit.jupiter.api.ClassOrderer;
import org.junit.jupiter.api.Nested;
import org.junit.jupiter.api.Test;
import org.junit.jupiter.api.TestClassOrder;

import static org.junit.jupiter.api.Assertions.assertEquals;

@TestClassOrder(ClassOrderer.ClassName.class)
public class ClassNameOrderTests {

    @Nested
    class Addition {

        @Test
        void test_Add() {
            System.out.println("test_Add()");
            assertEquals(10, 3 + 7);
        }
    }

    @Nested
    class IsEven {

        @Test
        void test_IsEven() {
            System.out.println("test_IsEven()");
            assertEquals(0, 10 % 2);
        }
    }

    @Nested
    class Subtraction {

        @Test
        void test_Subtract() {
            System.out.println("test_Subtract()");
            assertEquals(9, 14 - 5);
        }
    }

    @Nested
    class Multiply {

        @Test
        void test_Multiply() {
            System.out.println("test_Multiply()");
            assertEquals(10, 5 * 2);
        }
    }
}

The result of the above program is

2. DisplayName

It sorts test classes alphanumerically based on their display names.

package JUnit5;

import org.junit.jupiter.api.*;

import static org.junit.jupiter.api.Assertions.assertEquals;

@TestClassOrder(ClassOrderer.DisplayName.class)
public class ClassDisplayNameTests {

    @Nested
    @DisplayName("B")
    class AppFlowTests {

        @Test
        void test_Add() {
            System.out.println("test_Add()");
            assertEquals(10, 6 + 4);
        }
    }

    @Nested
    @DisplayName("C")
    class TearDownTests {

        @Test
        void test_Subtract() {
            System.out.println("test_Subtract()");
            assertEquals(10, 15 - 5);

        }
    }

    @Nested
    @DisplayName("A")
    class SetupTests {

        @Test
        void test_Multiply() {
            System.out.println("test_Multiply()");
            assertEquals(10, 5 * 2);
        }
    }
}

The result of the above program is

3. OrderAnnotation in Class

The test classes are sorted numerically based on values specified via the @Order annotation.

import org.junit.jupiter.api.*;

import static org.junit.jupiter.api.Assertions.assertEquals;

@TestClassOrder(ClassOrderer.ClassName.class) //sorts test classes alphanumerically based on their fully qualified class names.
public class ClassOrderedTests {

    @Nested
    @Order(2)
    class AppFlowTests {

        @Test
        void test_Add() {
            System.out.println("test_Add()");
            assertEquals(10, 3 + 7);
        }
    }

    @Nested
    @Order(3)
    class TearDownTests {

        @Test
        void test_Subtract() {
            System.out.println("test_Subtract()");
            assertEquals(9, 14 - 5);
        }
    }

    @Nested
    @Order(1)
    class SetupTests {

        @Test
        void test_Multiply() {
            System.out.println("test_Multiply()");
            assertEquals(10, 5 * 2);
        }
    }
}

The result of the above program is

4. Random

The test classes are sorted pseudo-randomly and support the configuration of a custom seed.

import org.junit.jupiter.api.*;
import static org.junit.jupiter.api.Assertions.assertEquals;

@TestClassOrder(ClassOrderer.Random.class)
public class ClassRandomTests {

    @Nested
    class Addition {

        @Test
        void test_Add() {
            System.out.println("test_Add()");
            assertEquals(10, 3 + 7);
        }
    }

    @Nested
    class IsEven {

        @Test
        void test_IsEven() {
            System.out.println("test_IsEven()");
            assertEquals(0, 10 % 2);
        }
    }

    @Nested
    class Subtraction {

        @Test
        void test_Subtract() {
            System.out.println("test_Subtract()");
            assertEquals(9, 14 - 5);
        }
    }

    @Nested
    class Multiply {

        @Test
        void test_Multiply() {
            System.out.println("test_Multiply()");
            assertEquals(10, 5 * 2);
        }
    }
}

The result of the above program is

Congratulation!! We have gone through different types of ordering in JUnit5. Happy Learning!!

vibssingh

How to run JUnit5 tests through Command Line

HOME

The previous tutorial explains to configure Junit in IntelliJ and run the tests as JUnit Tests. This tutorial shows the steps to run the tests through command line. We can ask, why we need to run the tests through command line?? There are many reasons, one of the reason is to achieve CI/CD. To run the tests in pipeline, they need to be run through command line. Another reason is that we don’t need to open the IDE to run the tests. Third reason is that many reports are only generated (Serenity, Cucumber), if the tests run through command line.

Below is a JUnit5 test.

import io.github.bonigarcia.wdm.WebDriverManager;
import org.junit.jupiter.api.*;
import org.openqa.selenium.WebDriver;
import org.openqa.selenium.chrome.ChromeDriver;
import org.openqa.selenium.chrome.ChromeOptions;

public class Demo {

    WebDriver driver;

    @BeforeEach
    public void setUp() {
        WebDriverManager.chromedriver().setup();
        ChromeOptions chromeOptions = new ChromeOptions();
        driver = new ChromeDriver(chromeOptions);
        driver.manage().window().fullscreen();
    }

    @Test
    public void Junit5Test() {
        driver.get("http://automationpractice.com/index.php");
        System.out.println("Title of Page :" + driver.getTitle());
        System.out.println("Page URL : " + driver.getCurrentUrl());
        Assertions.assertEquals("My Store",driver.getTitle());

    }

    @AfterEach
    public void tearDown() {
        driver.close();
    }
}

Let us see what happens when we try to run the JUnit tests through Command Line. This command is used to run the tests present in Demo class.

mvn clean test -Dtest=Demo

The output generated by the test is shown below

This shows that surefire-plugin is need to be add to the project to run t he tests successfully through command line.

Add surefire-plugin to the project

Go back to the Apache Maven Project and copy the code.

 <dependencies>

        <dependency>
            <groupId>org.junit.jupiter</groupId>
            <artifactId>junit-jupiter-engine</artifactId>
            <version>5.8.2</version>
            <scope>test</scope>
        </dependency>

        <dependency>
            <groupId>org.junit.jupiter</groupId>
            <artifactId>junit-jupiter-api</artifactId>
            <version>5.8.2</version>
            <scope>test</scope>
        </dependency>

</dependencies>

<build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-surefire-plugin</artifactId>
                <version>3.0.0-M5</version>
                <dependencies>
                    <dependency>
                        <groupId>org.junit.jupiter</groupId>
                        <artifactId>junit-jupiter-engine</artifactId>
                        <version>5.8.2</version>
                    </dependency>
                </dependencies>
            </plugin>
        </plugins>
    </build>

Again run the tests through command line using the command mentioned above. Now, will see that the tests are executed successfully.

Congratulations. We can see that JUnit5 tests are executed through command line. Happy Learning!!

vibssingh

JUnit5 Assertions Example

HOME

JUnit5 contains the assertions available as in JUnit 4 Assertions as well there are a few additional new asserts too. In this post, let’s discuss each new assertion in JUnit5 works in detail with examples.

1. assertIterableEquals

The assertIterableEquals() asserts that the expected and the actual iterables are deeply equal. In order to be equal, both iterable must return equal elements in the same order and it isn’t required that the two iterables are of the same type in order to be equal.

Example 1 – In this example, the number of elements as well as the sequence of elements is in the same order in both Iterables. It is not mandatory to have Iterables of the same type, so we can see as one of the Iterable is ArrayList whereas another Iteratble is of type LinkedList.

@Test
void iterableEqualsPositive() {
     Iterable<String> iterat1 = new ArrayList<>(asList("Java", "Junit", "Test"));
     Iterable<String> iterat2 = new LinkedList<>(asList("Java", "Junit", "Test"));

     assertIterableEquals(iterat1, iterat2);
  }

The assertion passes as the sequence and number of elements in both Iterables are the same.

Example 2 – In the below example, the ordering of elements in the Iterables is different.

@Test
void iterableEqualsNegative() {
     Iterable<String> iterat1 = new ArrayList<>(asList("Java", "Junit", "Test"));
     Iterable<String> iterat2 = new ArrayList<>(asList("Java","Test","Junit" ));

     assertIterableEquals(iterat1, iterat2);
 }

Here, we can see that the sequence of elements in Iterable are different, so the assertion fails.

Example 3 – In the below example, the number of elements is different in the Iterables. Iterable 1 has 3 elements whereas Iterable 2 has 4 elements.

@Test
void iterableEqualsNegative1() {
     Iterable<String> iterat1 = new ArrayList<>(asList("Java", "Junit", "Test"));
     Iterable<String> iterat2 = new LinkedList<>(asList("Java", "Junit", "Test","Junit5"));

     assertIterableEquals(iterat1, iterat2);
 }

As both Iterables do not have same number of elements, so the Assertion has failed.

Note:- There are no assertions like assertNotIterableEquals() or assertIterableNotEquals().

2. assertLinesMatch

This Assertion asserts that the expected list of Strings matches the actual list of String.
This method differs from other assertions that effectively only check String.equals(Object), in that it uses the following staged matching algorithm:
For each pair of expected and actual lines do
a) check if expected.equals(actual) – if yes, continue with next pair
b) otherwise treat expected as a regular expression and check via String.matches(String) – if yes, continue with the next pair
c) otherwise check if an expected line is a fast-forward marker, if yes apply to fast-forward actual lines accordingly (see below) and goto 1.

Example 1 – In the below example, expected has a regular expression that matches with the elements of actual.

@Test
void linesMatchPositive() {
    List<String> expected = asList("Java", "\\d+", ".*");
    List<String> actual = asList("Java", "11", "JUnit");

    assertLinesMatch(expected, actual);
}

As the regular expression of elements matches, the assertion passes.

Example 2 – In the below example, the elements in the lists are different.

@Test
void linesMatchNegative1() {
   List<String> expected = asList("Java", "\\d+", ".*");
   List<String> actual = asList("Test","Java", "11");

   assertLinesMatch(expected, actual);
}

The assertion fails as the elements are different in actual and expected.

Example 3 – In the below example, the number of elements is different in expected and actual lists.

@Test
void linesMatchNegative2() {
    List<String> expected = asList("Java", "\\d+", ".*");
    List<String> actual = asList("Java", "11");

    assertLinesMatch(expected, actual);
}

The assertion fails as the number of elements in expected is 3 whereas 2 elements are available in actual list.

3. assertThrows

The new assertThrows() assertion allows us a clear and a simple way to assert if an executable throws the specified exception type.

Example 1 – In the below example, the length of string arr is null, so it throws a NullPointerException

@Test
void exceptionTestingPositive() {

    String arr = null;
    Exception exception = assertThrows(NullPointerException .class, () -> arr.length() );
    assertEquals(null, exception.getMessage());
 }

Result

Example 2 – In the below example, the exception thrown by String arr is NullPointerException. But, we are asserting it with ArithmeticException.

@Test
 void exceptionTestingNegative() {

     String arr = null;
     Exception exception = assertThrows(ArithmeticException .class, () -> arr.length() );
     assertEquals("Arithmetic Exception", exception.getMessage());
 }

Result

4. assertTimeout

When we want to assert that execution of the supplied executable completes before the given timeout, we can use assertTimeout().

Example 1 – In the below example, assertTimeout() is 2 sec, which means the assertion should be completed within 2 secs. We are waiting for 1 sec and then perform the assertion.

 @Test
     void assertTimeoutPositive() {
       int a = 4;
       int b= 5;
        assertTimeout(
                ofSeconds(2),
                () -> {
                    // code that requires less then 2 seconds to execute
                    Thread.sleep(1000);
                }
        );
        assertEquals(9, (a + b));
    }

As the assertion is within the specified time of assertTimeout(), the timeout assertion passes and the test passes.

Example 2 – In the below example, assertTimeout() is 2 sec whereas are waiting for 5 sec and then performing the assertion.

  @Test
   void assertTimeoutNegative() {
        int a = 4;
        int b= 5;
        assertTimeout(
                ofSeconds(2),
                () -> {
                    // code that requires less then 2 seconds to execute
                    Thread.sleep(5000);
                }
        );
        assertEquals(9, (a + b));
    }

As the assertion is outside the specified time of assertTimeout(), so the test fails. The assertion fails with an error message similar to: “execution exceeded timeout of 2000 ms by 3010 ms”.

Example 3 – In the below example, the assertion is mentioned just after

The executable will be executed in the same thread as that of the calling code. Consequently, execution of the executable will not be preemptively aborted if the timeout is exceeded.

@Test
 void assertTimeoutNegative1() {
    int a = 4;
    int b= 5;
    assertTimeout(
        ofSeconds(2),
        () -> {
                // code that requires less then 2 seconds to execute
                 Thread.sleep(5000);
                 assertEquals(10, (a + b));
              }
        );
    }

This shows that the assertion assertEquals() is still executed after the timeout also.

5. assertTimeoutPreemptively()

This assertion works just like assertTimeout(). When we want to assert that the execution of the supplied executable completes before the given timeout, we can use assertTimeoutPreemptively(). The only difference is that here the executable will be executed in a different thread than that of the calling code, whereas in assertTimeout() the executable will be executed in the same thread as that of the calling code. Furthermore, execution of the executable will be preemptively aborted if the timeout is exceeded here as contrary to assertTimeout() where the executable will not be preemptively aborted.

@Test
    void assertPreemptiveTimeoutNegative() {
        int a = 4;
        int b= 5;
        assertTimeoutPreemptively(
                ofSeconds(2),
                () -> {
                    // code that requires less then 2 seconds to execute
                    Thread.sleep(5000);
                    assertEquals(9, (a + b));
                }
        );
    }

Result

There is another very famous assertion called assertAll() [Group Assertions]. This is discussed in another tutorial.

In this post, We saw that JUnit Jupiter comes with many of the assertion methods that JUnit 4 has and adds a few that lend themselves well to being used with Java 8 lambdas. All JUnit Jupiter assertions are static methods in the org.junit.jupiter.api.Assertions class.

vibssingh

Grouped Assertions in JUnit 5 – assertAll()

Last Updated On

HOME

Table of Content

  1. What is Grouped Assertions in JUnit5?
  2. What is JUnit5?
  3. Types of AssertAll assertions
    1. Grouped Assertions With Heading As Parameter
      1. Grouped Assertions with Same Assertion Type
      2. Grouped Assertions with Different Assertion Types
      3. Grouped Assertions with multiple failure
    2. Grouped Assertions Without Heading As Parameter
      1. Grouped Assertions with Same Assertion Type
    3. Nested Or Dependent Grouped Assertions
      1. Example with Outer assertAll() Passing and Nested assertAll() Executing
      2. Example of Outer AssertAll() Causing Nested AssertAll() Not to Execute
      3. Example of Outer AssertAll() allows Nested AssertAll(), but nested AssertAll fails

What is Grouped Assertions in JUnit5?

Grouped assertions in JUnit 5 help make your tests cleaner and more readable by allowing you to group related assertions together with a single failure message if any of them fail. This is particularly useful when you want to ensure that multiple conditions are true in a given test scenario.

JUnit 5 supports an additional Assertion feature called Grouped assertions. In JUnit4, when you have to assert let’s say – 3 different conditions, then you need to write 3 different assertions and they will be executed sequentially. Imagine, 2nd assertion fails, then the program stops there and will not go to the 3rd assertion. To overcome this problem, JUnit5 has a new assertion called Grouped assertion that execute all the conditions present within it using assertAll(), irrespective of the fact if any assertion fails or not and generate a consolidated report with all the failures. To be honest, I love this feature and use very frequently.

All JUnit Jupiter assertions are static methods. They come from class:

org.junit.jupiter.api.Assertions

What is JUnit5?

JUnit 5 is composed of several different modules from three different sub-projects.

JUnit 5 = JUnit Platform + JUnit Jupiter + JUnit Vintage

The JUnit Platform serves as a foundation for launching testing frameworks on the JVM. It also defines the Test Engine  API for developing a testing framework that runs on the platform.

JUnit Jupiter is the combination of the new programming model and extension model for writing tests and extensions in JUnit 5. The Jupiter sub-project provides a Test Engine for running Jupiter-based tests on the platform.

JUnit Vintage provides a Test Engine for running JUnit 3 and JUnit 4 based tests on the platform. It requires JUnit 4.12 or later to be present on the classpath or module path.

To use JUnit5, add the Junit5 maven dependency to the POM.xml

<dependency>
    <groupId>org.junit.jupiter</groupId>
    <artifactId>junit-jupiter-engine</artifactId>
    <version>511.4</version>
    <scope>test</scope>
</dependency>

<dependency>
	<groupId>org.junit.jupiter</groupId>
	<artifactId>junit-jupiter-api</artifactId>
    <version>5.11.4</version>
	<scope>test</scope>
</dependency>

Types of AssertAll assertions

Grouped Assertions With Heading As Parameter

Grouped Assertions with Same Assertion Type

Example 1 – The following example demonstrates positive assertions using `assertAll()` in JUnit 5. All assertions in this example are of the same type, specifically `assertEquals()`, grouped within an `assertAll()` assertion. The heading parameter for this group of assertions is “GroupedAssertionsWithSameAssertionType”.

@Test
void allPositive1() {
   assertAll(
     "GroupedAssertionsWithSameAssertionType",
      () -> assertEquals(8, 5+3, "8 is not sum of 5 and 3"),
      () -> assertEquals("java", "JAVA".toLowerCase()),
      () -> assertEquals(16,4*4,"16 is not product of 4 and 4")
   );
}

Result

As all 3 assertions pass, so the final result passes.

Grouped Assertions with Different Assertion Types

Example 2 – The following example demonstrates using `assertAll()` in JUnit 5 to group assertions of different types – assertEquals(), assertNotNull and assertNotEquals() within a single test. It consists of the heading parameter with the value “GroupedAssertionsWithDifferentAssertionType”.

@Test
void allPositive2() {

    String str ="Spring";
    assertAll(
        "GroupedAssertionsWithDifferentAssertionType",
         () -> assertEquals(8, 5+3, "8 is not sum of 5 and 3"),
         () -> assertNotNull(str, () -> "The string should be null"),
         () -> assertEquals("java", "JAVA".toLowerCase()),
         () -> assertNotEquals(20,5*3,"20 is product of 5 and 3")
    );
 }

Result

As all 3 assertions pass, so the final result passes.

Grouped Assertions with multiple failure

Example 3 – In the below example, out of 4 assertions, 3 assertions are failing, so the output will have the detail about all 3 assertion errors.

 @Test
 void allNegative() {

    String str ="Spring";
    Iterable<String> iterat1 = new ArrayList<>(asList("Java", "Junit4", "Test"));
    Iterable<String> iterat2 = new ArrayList<>(asList("Java", "Junit5", "Test"));

    assertAll(
        "Negative-GroupedAssertionsWithDifferentAssertionType",
        () -> assertIterableEquals(iterat1, iterat2),
        () -> assertNull(str, () -> "The string should be null"),
        () -> assertEquals("java", "JAVA"),
        () -> assertNotEquals(20,5*3,"20 is product of 5 and 3")
     );
 }

Result

As one of the asserts in the group fails, instead of AssertionFailureError it results in MultipleFailuresError thereby displaying the heading of the grouped assertion passed as the input parameter i.e. Negative-GroupedAssertionsWithDifferentAssertionType in this example. This image shows all the 3 assertion failures.

Assertion 1 fails as we were expecting JUnit4, but response has JUnit5
Assertion 2 fails as the string was not NULL.
Assertion 3 fails as Java is not equal to JAVA (case sensitivity).

Grouped Assertions Without Heading As Parameter

Grouped Assertions with Same Assertion Type

The assertAll () can be implemented without using the heading parameter. The below example is the same as the above one, we are just skipping the heading part.

@Test
void allNegative() {

      String str ="Spring";
      Iterable<String> iterat1 = new ArrayList<>(asList("Java", "Junit4", "Test"));
      Iterable<String> iterat2 = new ArrayList<>(asList("Java", "Junit5", "Test"));

     // In a grouped assertion all assertions are executed, and all failures will be reported together
      assertAll(
          () -> assertIterableEquals(iterat1, iterat2),
          () -> assertNull(str, () -> "The string should be null"),
          () -> assertEquals("java", "JAVA"),
          () -> assertNotEquals(20,5*3,"20 is product of 5 and 3")
      );
  }

Result

The result displays without a heading.

Nested Or Dependent Grouped Assertions

Example with Outer assertAll() Passing and Nested assertAll() Executing

When one assertAll() includes one or more assertAll() then these are referred to as Nested or Dependent grouped assertions.

Example 1 – In this case, first, the assertAll() validates if the sum is correct or not. The sum is correct here, so the control moves to the nested assertAll() to verify all the assertions present within it.

@Test
void allDependentPositive() {

   String str ="Spring";

   // Within a code block, if an assertion fails the subsequent code in the same block will be skipped.
    assertAll(
         "DependentPositiveAssertions",
         () -> {
                assertEquals(8, 5 + 3, "8 is not sum of 5 and 3");

                // Executed only if the previous assertion is valid.
                assertAll("sub-heading",
                   () -> assertNotNull(str, () -> "The string should be null"),
                   () -> assertEquals("java", "JAVA".toLowerCase()),
                   () -> assertEquals(20, 5 * 4, "20 is product of 5 and 4")
                ); // end of inner AssertAll()
           }

      );  // end of outer AssertAll()
 }

Result

All the assertions within nested assertAll() are passes. So the final result passes.

Example of Outer AssertAll() Causing Nested AssertAll() Not to Execute

Example 2 – In the below example, outer AssertAll() fails, so all the assertions within nested/dependent assertAll() are not executed.

 @Test
 void allDependentNegative() {

    String str ="Spring";

    // Within a code block, if an assertion fails the subsequent code in the same block will be skipped.
    assertAll(
       "DependentPositiveAssertions",
        () -> {
                assertEquals(8, 5 + 4, "8 is not sum of 5 and 3");

                // Executed only if the previous assertion is valid.
                assertAll("sub-heading",
                   () -> assertNull(str, () -> "The string should be null"),
                   () -> assertNotEquals("java", "JAVA".toLowerCase()),
                   () -> assertNotEquals(20, 5 * 4, "20 is product of 5 and 4")
               ); // end of inner AssertAll()
           }

        ); // end of outer AssertAll()
    }

Result

Example of Outer AssertAll() allows Nested AssertAll(), but nested AssertAll fails

Example 3 – In the below example, outer AssertAll() passes, so all the assertions within nested/dependent assertAll() are executed. But due to the failure of assertNull, the nested assertions are not evaluated, and the report will indicate the failure of `assertNull` first

@Test
void allDependentNegative1() {

    String str ="Spring";

   // Within a code block, if an assertion passes the subsequent code in the same block will be executed.
    assertAll(
      "DependentNegativeAssertions",
      () -> {
             assertEquals(8, 5 + 3, "8 is not sum of 5 and 3");

             // Executed only if the previous assertion is valid.
             assertAll("sub-heading",
               () -> assertNull(str, () -> "The string should be null"),
               () -> assertNotEquals("java", "JAVA".toLowerCase()),
               () -> assertNotEquals(20, 5 * 4, "20 is product of 5 and 4")
             ); // end of inner AssertAll()
         }

      ); // end of outer AssertAll()
    }

Result

The nested assertions have failed. So they can be seen in the execution status.

In short,

  1. When first assertAll() method passes, then all the subsequent assertions within that block will be executed and these assertions can further pass or fails.
  2. When the first assertAll() assertion fails, then the execution of subsequent assertions is skipped.

That’s it! Congratulations on making it through this tutorial and hope you found it useful! Happy Learning!!

vibssingh

JUnit4 Assertions

Last Updated On

HOME

JUnit provides overloaded assertion methods for all primitive types and objects and arrays (of primitives or Objects). The parameter order is the expected value followed by an actual value. Optionally, the first parameter can be a String message that is output on failure. Only failed assertions are recorded. Assertions is a JUnit API or library of functions through which you can verify if a particular logic or condition returns true or false after execution of the test. If it returns false, then an AssertionError is thrown.

Table of Contents

  1. Type of Assertions
    1. assertEquals()
    2. assertEquals with NULL
    3. assertNotEquals()
    4. assertArrayEquals()
    5. assertNull()
    6. assetNotNull()
    7. assertFalse()
    8. assertTrue()
    9. assertSame()
    10. fail()
  2. What is the difference between assertEquals() and assertSame() assertions?

These assertions are imported from:

import org.junit.Assert.*;

In order to increase the readability of the test and of the assertions itself, it’s always recommended to import statically the respective class.

import static org.junit.Assert.*;

Type of Assertions

1.assertEquals()

The assertEquals() assertion verifies that the expected and the actual values are equal. Below is an example of assertion pass.

@Test
public void equalsPositive() {
    String expected = "JUnit";
    String actual = "JUnit";

    assertEquals("Expected and Actual Strings are not equal",expected,actual);
}

The output of the above program is

If expected and actual values are not equal, an AssertionError without a message is thrown. Below is an example of AssertionError thrown by assertEquals().

@Test
public void equalsNegative() {
    String expected = "JUnit";
    String actual = "JUnit Test";

    assertEquals(expected,actual);
}

The output of the above program is

2. assertEquals with NULL

If expected and actual are NULL, then they are considered equal in assertEqual().

@Test
public void test2() {

    String expected = null;
    String actual = null;

    assertEquals("Expected and Actual Strings are not null",expected,actual);
}

The output of the above program is

3. assertNotEquals()

The assertNotEquals() assertion verifies that the expected and the actual values are not equal. Below is an example where expected and actual values are not equal.

 @Test
  public void notEqualsPositive() {
      String expected = "JUnit";
      String actual = "JUnit5";

      assertNotEquals("Expected and Actual Strings are equal",expected,actual);

 }

The output of the above program is

If expected and actual values are equal, then an AssertionError with a message is thrown. Below is an example of AssertionError thrown by assertNotEquals().

@Test
public void notEqualsNegative() {
   String expected = "JUnit";
    String actual = "JUnit";

    assertNotEquals("Expected and Actual Strings are equal",expected,actual);
}

The output of the above program is

4. assertArrayEquals()

If we want to assert that two arrays are equals, we can use the assertArrayEquals(). In the below example, two arrays are equal, so there is no AssertionError.

    @Test
    public void arrayEqualsPositive() {
        char[] expected = {'j','u','n','i','t'};
        char[] actual = {'j','u','n','i','t'};

        assertArrayEquals("Expected and Actual Arrays are not equal",expected,actual);

    }

The output of the above program is

Below is an example of AssertionError thrown by assertArrayEquals(), when arrays are different.

    @Test
    public void arrayEqualsNegative() {
        char[] expected = {'J','U','n','i','t'};
        char[] actual = "JUnit Test".toCharArray();

        assertArrayEquals("Expected and Actual Arrays are not equal",expected,actual);

    }

The output of the above program is

5. assertNull()

When we want to test if an object is null we can use the assertNull() assertion.

    @Test
    public void nullPositive() {

        String str = null;
        assertNull("String is not null",str);

    }

The output of the above program is

If the object is not null, then an AssertionError is thrown with the given message. Below is an example of AssertionError thrown by assertNull().

 @Test
 public void nullNegative() {

    String str = "Happy";
    assertNull("String is not null",str);

 }

The output of the above program is

6. assetNotNull()

If we want to assert that an object should not be null, we can use the assertNotNull assertion. Below is an example of object not null.

 @Test
    public void notNullPositive() {

        String str = "Spring";
        assertNotNull("String is null",str);

    }

The output of the above program is

If the object is null, then an AssertionError is thrown with the given message. Below is an example of AssertionError thrown by assertNotNull().

   @Test
    public void notNullNegative() {

        String str = null;
        assertNotNull("String is null",str);

    }

The output of the above program is

7. assertFalse()

If we want to verify that the condition is false, we can use assertFalse() assertion.

    @Test
    public void falsePositive() {

        String str1 = "Happy Days";
        String str2 = new String("Summer");
        assertFalse("String 2 is not present in String 1", str1.contains(str2));

    }

The output of the above program is

If the condition is true, then an AssertionError is thrown with the given message. Below is an example of AssertionError thrown by assertFalse().

    @Test
    public void falseNegative() {

        String str1 = "Happy Days";
        String str2 = new String("Happy");
        assertFalse("String 2 is not present in String 1", str1.contains(str2));

    }

The output of the above program is

8. assertTrue()

If we want to verify that the condition is true, we can use assertTrue() assertion.

@Test
public void truePositive() {

    String str1 = "Happy Days";
    String str2 = new String("Days");
    assertTrue("String 2 is present in String 1", str1.contains(str2));

}

The output of the above program is

If the condition is false, then an AssertionError is thrown with the given message. Below is an example of AssertionError thrown by assertTrue().

    @Test
    public void trueNegative() {

        String str1 = "Happy Days";
        String str2 = new String("Healthy");
        assertTrue("String 2 is present in String 1", str1.contains(str2));

    }

The output of the above program is

10. assertSame()

The assertSame() internally uses operator == to validate if two objects are equal. Despite the two string values are the same, the below test fails. The reason is that the two object references are different.

In the below example, str1 and str2 have same value as well refer to the same memory addresses, so the assertion pass.

@Test
public void samePositive() {

   String str1 = "Happy";
   String str2 = str1;
   assertSame("String1 and String 2 have different object reference",str1, str2);

 }

The output of the above program is

Both the string objects str1 and str2 have the same value but are referring to the different memory addresses that result in the failure of the assert function.

@Test
public void sameNegative() {

    String str1 = "Happy";
    String str2 = new String("Happy");
    assertSame("String1 and String 2 have different object reference",str1, str2);

    }

The output of the above program is

11. fail()

The fail assertion fails a test throwing an AssertionFailedError. It can be used to verify that an actual exception is thrown or when we want to make a test failing during its development.

@Test
public void test14() {

    String str1 = "Happy Days";
    String str2 = new String("Happy");
    Assert.fail("Fail this test");
}

The output of the above program is

What is the difference between assertEquals() and assertSame() assertions?

assertEquals() uses equals() method to compare objects, while assertSame() uses == operator to asserts that two objects refer to the same object.

In the below example, str1 and str2 both have the same value. So, the assertion passes here when we use assertEquals().

@Test
public void test10() {

   String str1 = "Happy";
   String str2 = new String("Happy");
   Assert.assertEquals("String1 and String 2 are equal",str1, str2);

}

The output of the above program is

In the below example, both str1 and str2 have same value but different object reference, so the assertion fails with assertSame().

@Test
public void test11() {

    String str1 = "Happy";
    String str2 = new String("Happy");
    Assert.assertSame("String1 and String 2 have different object reference",str1, str2);
}

The output of the above program is

In the below example, str1 and str2 have the same object reference. So, now the assertion passes with assertSame().

 @Test
 public void test12() {

    String str1 = "Happy";
    String str2 = str1;
    Assert.assertSame("String1 and String 2 have different object reference",str1, str2);

 }

The output of the above program is
