Postman contains a full-featured testing sandbox that enables you to write and execute JavaScript-based tests for your API. You can then integrate Postman with your CI/CD build system using Newman, the command-line collection runner for Postman. In this tutorial, we are going to learn how we can integrate Postman with Jenkins.

Table of Contents

1. Prerequisite
2. Implementation Steps
   1. Download the NodeJS Plugin
   2. Global Tool Configuration for NodeJS
   3. Create a new FreeStyle project
   4. Source Code Management
   5. Build Environment
   6. Select Execute Windows batch command
   7. Execute the tests

Prerequisite:

• Jenkins installed on the machine
• NodeJS installed on the machine

Implementation Steps

Step 1: Download the NodeJS Plugin

To generate a Performance Report in Jenkins, we need to download NodeJS Plugin. Please refer to this tutorial to install the plugin – How to install Plugins in Jenkins.

Go to Manage Jenkins > Manage Plugins and install the NodeJS plugin.

Step 2: Global Tool Configuration for NodeJS

Go to Manage Jenkins > Global Tool Configuration and under NodeJS, select Add NodeJS.

Enter a name for the Node.js installation.

Select the version of NodeJS installed on your machine from the Version dropbox.

In Global npm packages to install, enter newman.

Click on the Apply and Save buttons.

Step 3: Create a new FreeStyle project

In the General section, enter the project description in the Description box.

Step 4: Source Code Management

Select Source Code Management as None if the project is locally present on the machine.

Step 5: Build Environment

Select the “Provide Node & npm bin/folder to PATH” option.

Step 6: Select Execute Windows batch command

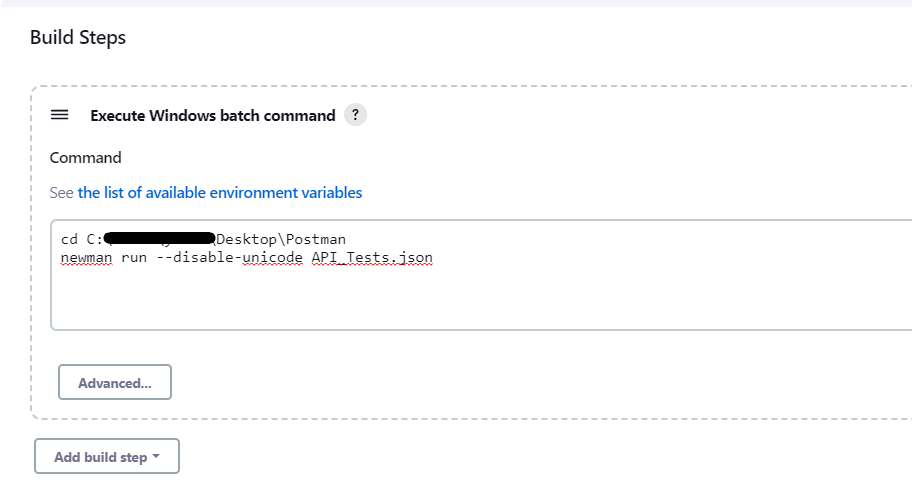

In the Build Steps section, select Execute Windows batch command.

Use the below command to go to the path where the JMeter is placed in your system.

cd C:\Users\Vibha\Desktop\Postman
newman run --disable-unicode API_Tests.json

Click on the Apply and Save buttons.

We have created a new project “Postman_Demo” with the configuration to run the Postman scripts.

Step 7: Execute the tests

Let’s execute it now by clicking on the “Build Now” button.

Right-click on Build Number (here in my case it is #1).

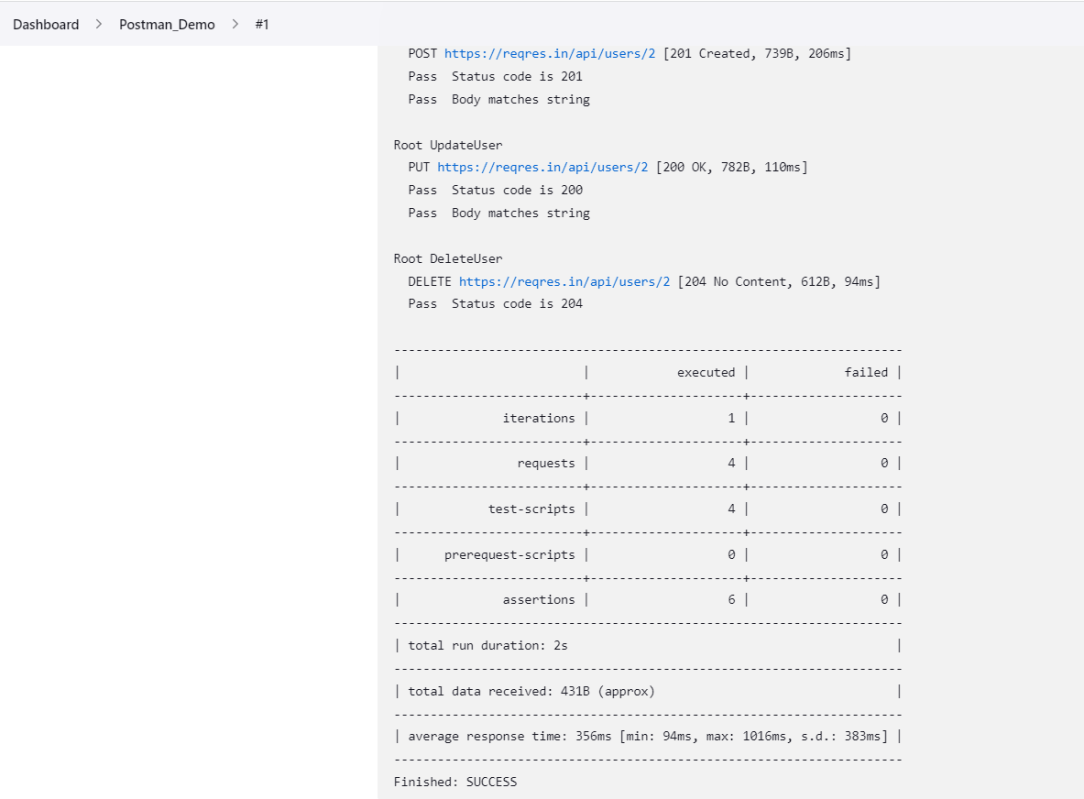

Click on Console Output to see the result.

Congratulations on making it through this tutorial and hope you found it useful! Happy Learning!! Cheers!!
